Shure BLX4 Wireless Receiver for BLX Wireless System - H9 Band

Shure BLX4 H9 Band Wireless Receiver - Ideal for Small Venues

Upgrade your audio experience with this amazing analog wireless receiver! It offers improved linearity and frequency response, plus group and channel scan for a breeze of set-up. • Easy Setup: Group and channel scan for hassle-free installation. • Enhanced Performance: Improved linearity and frequency response. • Colorful Indicator: Two-color audio status indicator LED.

Features:

• Perfect for small venues and conference rooms
• Single-channel, portable tabletop design
• 123 auto-scan frequencies for quick setup
• Internal antenna diversity for better signal
• Expandable to 12 mic channels/300' range

Specifications:

• System:
  • 123 RF channel frequencies
  • Antenna diversity
  • RF frequency band: H9(512 - 542 MHz)
  • RF bandwidth: 24 MHz
  • Auto-scan RF channel scanning
  • Max operating range: 300' / 91.4 m
  • Max transmitters per band: 12
• Receiver:
  • Tabletop receiver type
  • 2 internal, fixed antennas
  • 1 audio channel

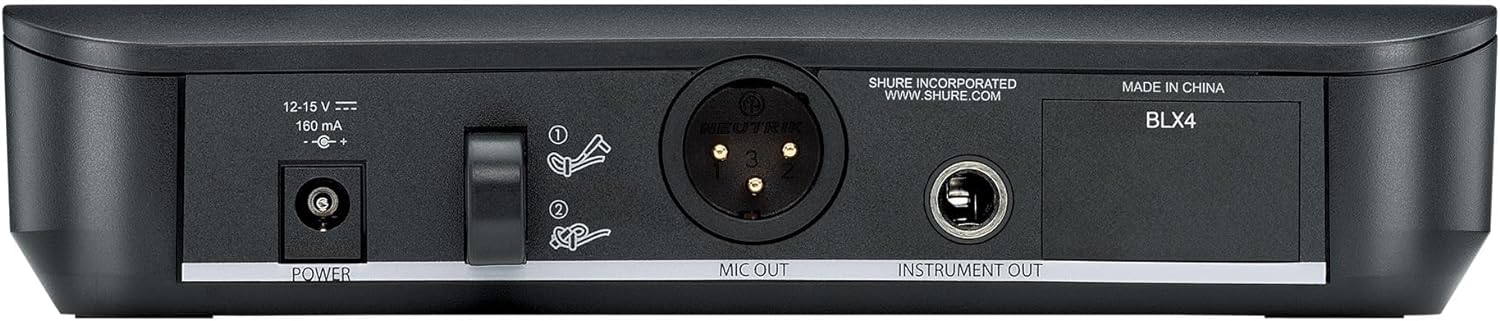

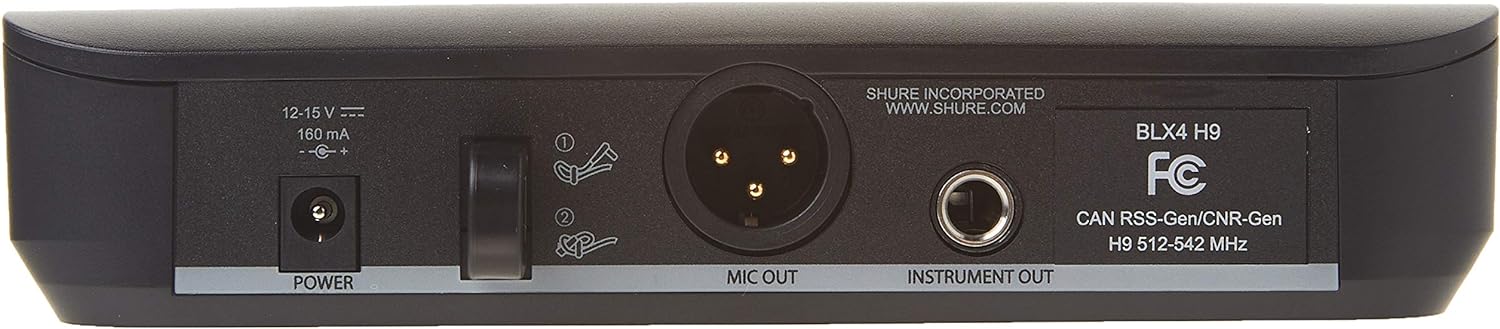

  • Audio I/O:
    • 1 XLR 3-pin male balanced output
    • 1 1/4' TS female unbalanced output
  • Audio output level:
    • XLR outputs: -27 dBV (Mic level)
    • 1/4' outputs: -13 dBV (Instrument level)
  • Frequency response: 50 Hz to 15 kHz (depends on mic)
  • Impedance:
    • XLR outputs: 200 Ohms
    • 1/4' outputs: 50 Ohms
  • Approximate RF sensitivity: -105 dBm
  • Adjacent channel isolation: >50 dB
  • Power requirements: AC/DC power adapter

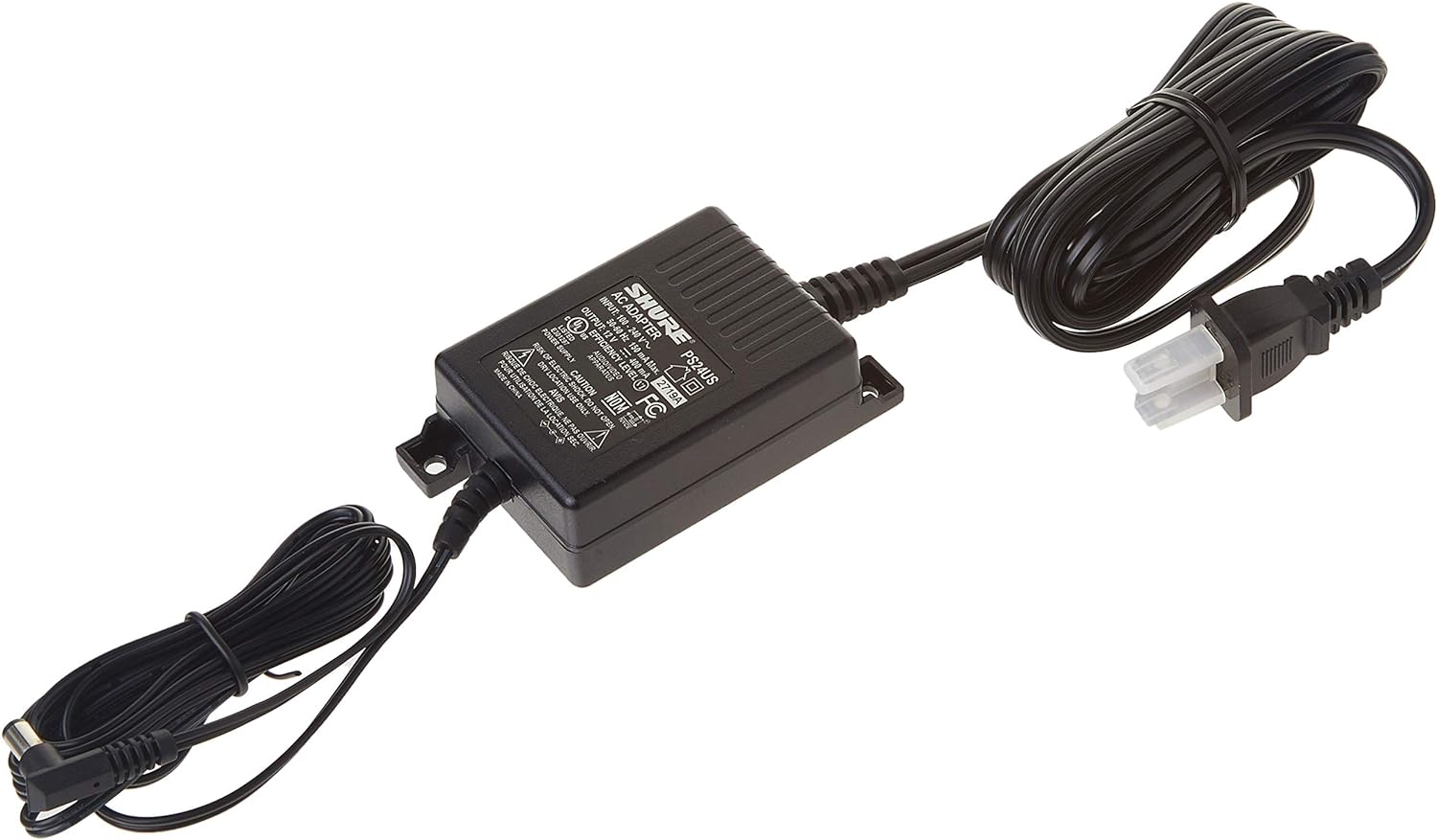

  • AC/DC power adapter: 12 to 15 VDC at 160 mA, center-positive (included)

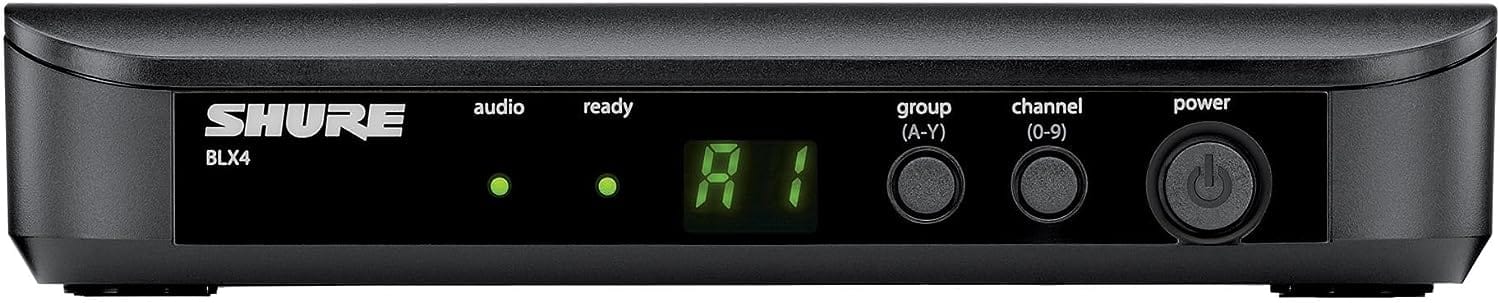

  • Display & indicators:
    • 1 multi-segment LED (channel, group)
    • 2 LEDs (AF level, sync)
  • Housing: ABS
  • Operating temperature: 0 to 135 °F / -17 to 57 °C
  • Dimensions: 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm
• Packaging Info:
  • Package weight: 2.55 lb
  • Box dimensions (LxWxH): 13.5 x 11.9 x 4'

This Shure BLX4 wireless receiver is perfect for small venues like conference rooms. It has a single-channel, portable tabletop design. The system has 123 auto-scan frequencies. The receiver has internal antenna diversity. It can be expanded to 12 mic channels with a 300' range. The package weighs 2.55 lb and the box dimensions are 13.5 x 11.9 x 4'.
