Audio Technica ATW-3212-C710 3000 Series Wireless Handheld Mic with C710

Audio Technica ATW-3212-C710 3000 Series Wireless Handheld Microphone with C710

Unleash your voice with Audio-Technica's fourth-generation 3000 Series wireless systems! Enjoy easy setup, versatile operation, and rock-solid, richly detailed high-fidelity sound. These systems give you the power and flexibility to operate within the congested UHF spectrum.

• Class-leading 60 MHz tuning range: More than twice that of previous versions! Available in four frequency bands – DE2 (470–530 MHz), EE1 (530–590 MHz), EF1 (590–650 MHz), and FG1 (650–700 MHz). Easily scan and select frequencies on the receiver and sync with the transmitter via IR sync. Set a backup frequency with the push of a button for interference protection.

• True Diversity operation: Reduces dropouts for a seamless audio experience.

• Auto Squelch feature: Automatically adjusts squelch for maximum range and minimum interference.

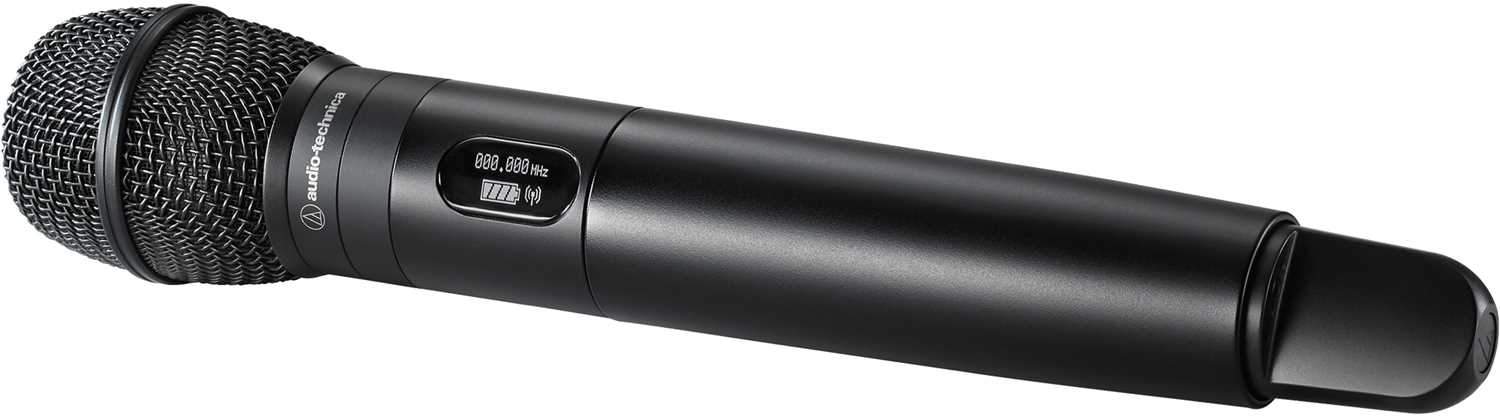

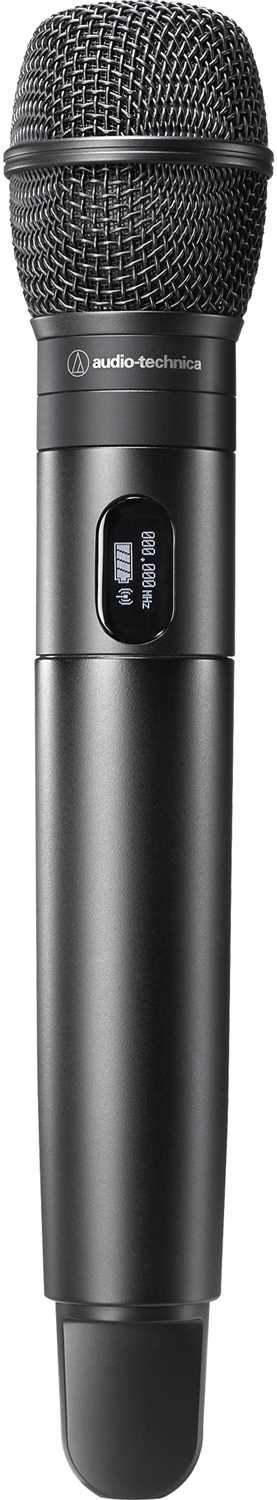

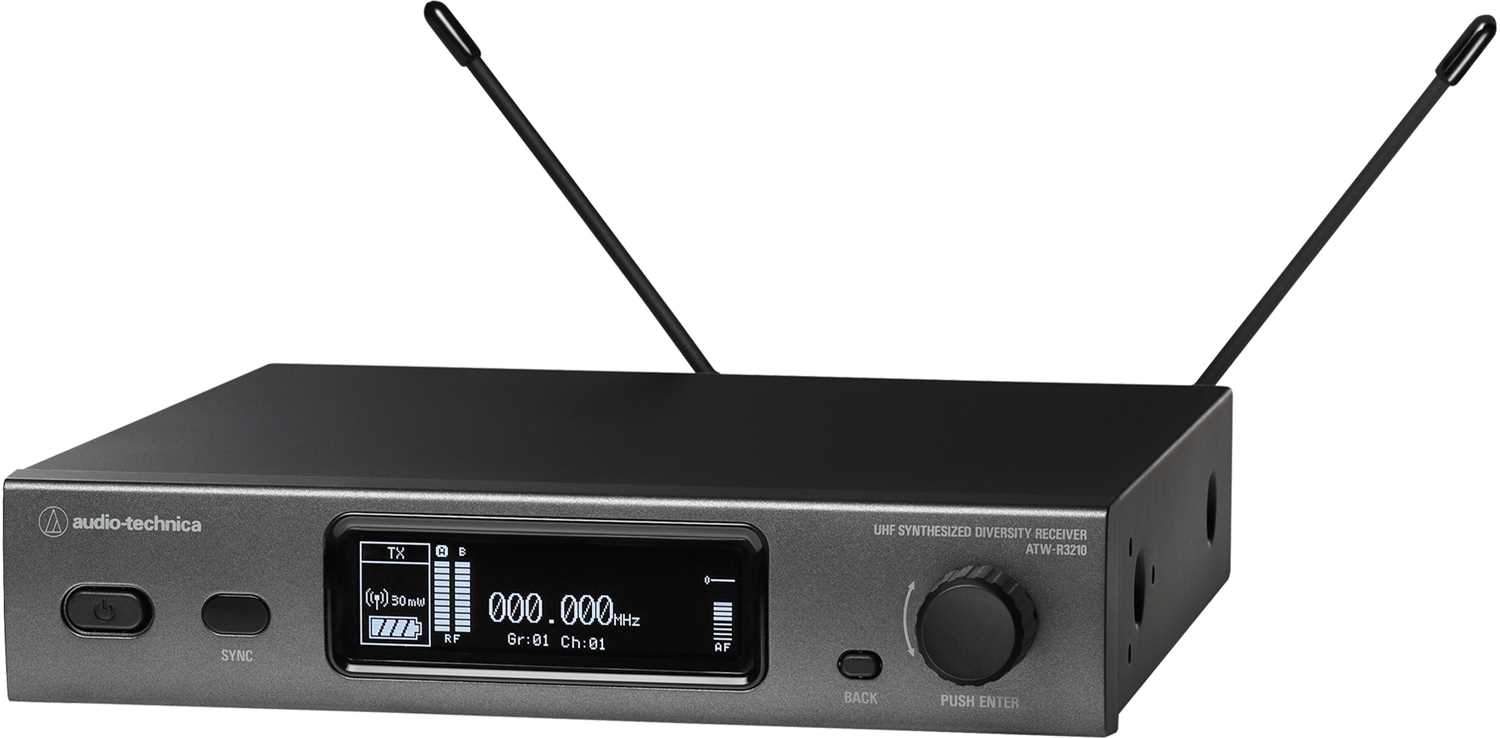

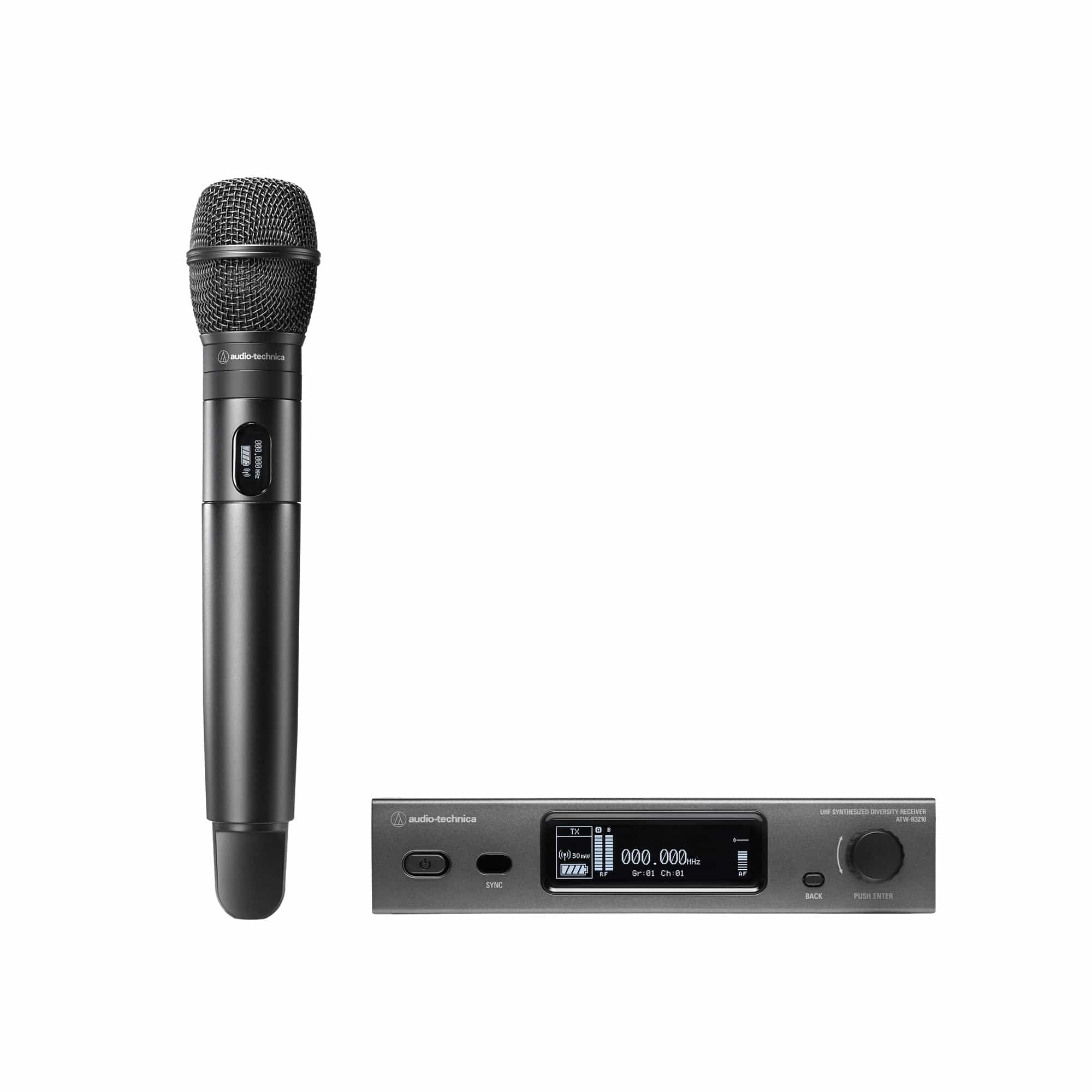

This system configuration includes an ATW-R3210 receiver, an ATW-T3202 handheld transmitter, and an ATW-C710 interchangeable capsule. The ATW-T3202 comes with an ATW-C710 condenser interchangeable cardioid capsule and an industry-standard thread for compatibility. Rugged metal housings, powered by two AA batteries. Charging terminals work with optional smart charging docks. Antenna power available, ground-lift switch for hum elimination. Balanced and unbalanced audio output jacks.

Specifications:

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in four frequency bands: DE2 (470–530 MHz), EE1 (530–590 MHz), EF1 (590-650 MHz) and FG1 (650-700 MHz).
• Unique multifunction button on the handheld transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
• Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
• Charging terminals on transmitter work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks
• ATW-C710 condenser interchangeable cardioid capsule

Capsule Specifications:

• Element: Fixed-charge back plate permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 80 - 20000 Hz
• Impedance: 60 Ohms
• Power Requirements: 5 V DC
• Battery Type: Two 1.5V AA, not included
• Weight: 114 g
• Dimensions: 84.4 mm long, 50.0 mm max. diameter
• Output Connector: Interchangeable industry-standard thread

Overall System

• Operating Frequencies: Band EE1: 530.000 to 589.975 MHz

Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.

• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation:
• ATW-T3201: ±38 kHz (THD:10%)
• ATW-T3202: ±36 kHz (THD:10%)
• Simultaneous Use: 40 Channels per band*

For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representative. *Region and band dependent

• Frequency Response:
• ATW-T3201: 31 Hz to 15500 Hz
• ATW-T3202: 25 Hz to 16700 Hz
• Operating Range: 100 m
• Dynamic Range:
• ATW-T3201 Mic input: > 115 dB (A-weighted), typical
• ATW-T3201 Inst input: > 112dB (A-weighted), typical
• ATW-T3202: > 115 dB (A-weighted), typical
• Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
• Operating Temperature Range: -5 oC to +45 oC

Receiver:

• Receiving System: True Diversity
• Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 termination)
• Maximum Output Level:
• XLR / Balanced: +14 dBV
• 6.3 mm ( ') / Unbalanced: +8 dBV
• Antenna Input: BNC-type, 50 Ω
• Power Output: 12 V DC, 160 mA (combined)
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
• Dimensions: 210.0 mm x 191.0 mm x 43.4 mm (W x H x D)
• Weight: 1100 g, without accessories
• Accessories Included:
• Two Flexible UHF antennas
• AC adapter (country dependent)
• Rack Mount Adaptors

Handheld Transmitter:

• RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 Ω
• Spurious Emissions: Following Federal and National Regulations
• Microphone Element: Interchangeable industry-standard thread
• Battery Type: Two 1.5V AA, not included
• Battery Life:
• High: 8.0 hours / Low: 9.0 hours (alkaline)
• High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
• Depending on battery type, usage and environmental conditions.
• Dimensions: 193.0 mm long, 37.0 mm maximum diameter
• Net Weight: 200 g
• Accessories Included: AT8456a Quiet-Flex stand clamp

The Audio Technica ATW-3212-C710 3000 Series Wireless Handheld Microphone is perfect for presenters, performers, and public speakers. It offers easy setup and great sound quality. The system includes an ATW-R3210 receiver, an ATW-T3202 handheld transmitter, and an ATW-C710 interchangeable capsule. The receiver is 210.0 mm x 191.0 mm x 43.4 mm (W x H x D) and weighs 1100 g without accessories. The handheld transmitter is 193.0 mm long, 37.0 mm maximum diameter, and weighs 200 g. It comes with an AT8456a Quiet-Flex stand clamp. Ideal for use in conferences, events, and live performances.
