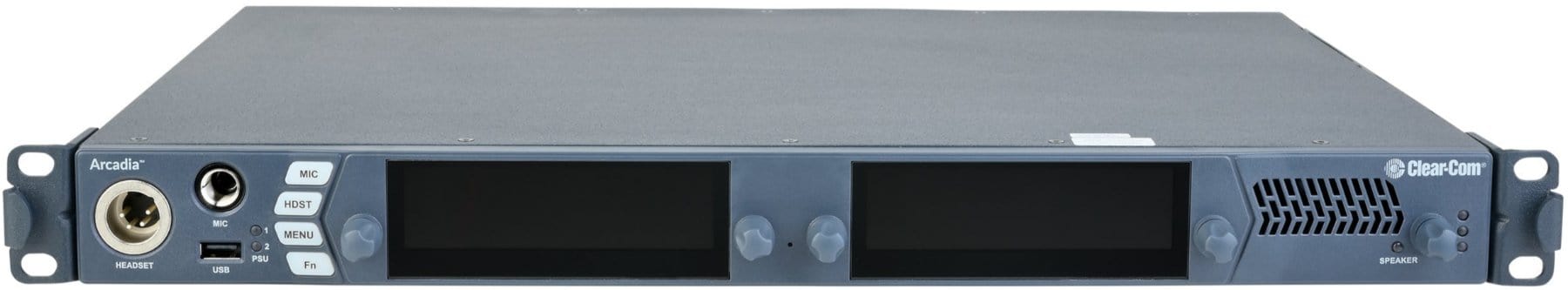

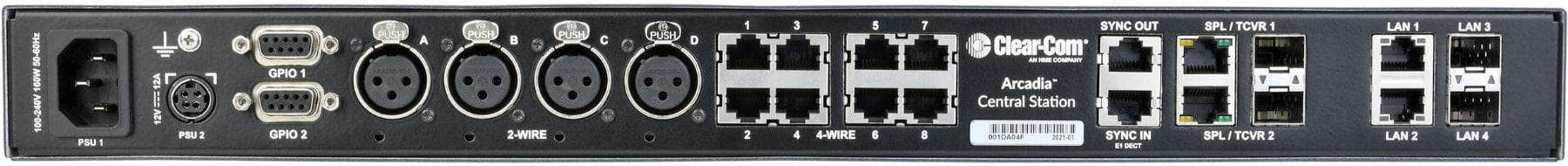

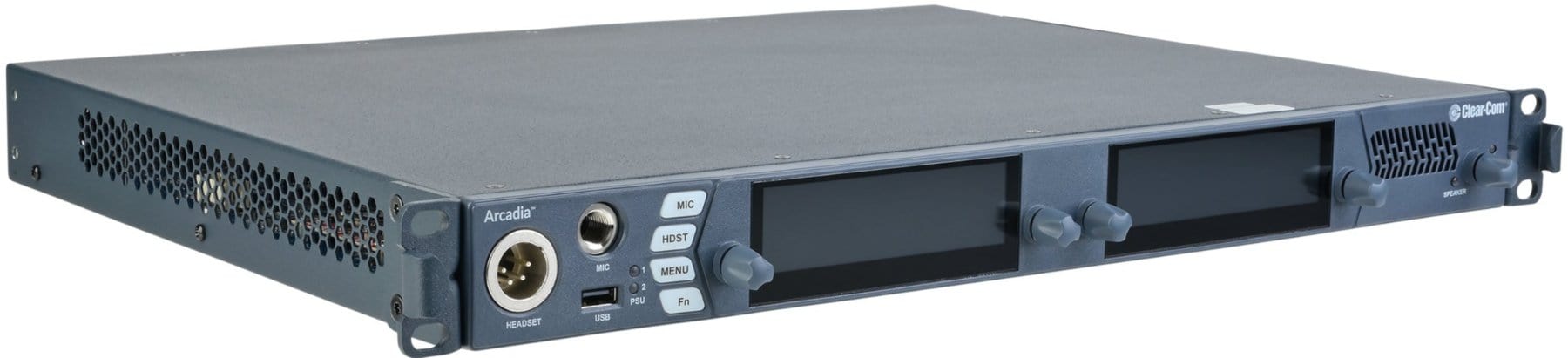

Clear-Com Arcadia Central Station 48-Port 1RU with HelixNet Connectivity and Dante
The Arcadia X5 48P is a must-have for seamless communication setups! It comes with an Arcadia Central Station and one 5-pin XLR male headset. Ideal for professionals seeking reliable audio solutions, it supports up to 32 Free Speak II or Free Speak Edge beltpacks, 16 IPT transceivers, and up to 10 E1 transceivers with 48 ports of connectivity. • Two large high-resolution TFT color touch screens and four rotary encoders make menu navigation a breeze. • Clear-Com's integrated Core Configuration Manager ensures quick and hassle-free setup with its intuitive interface. • With features like high-quality 12kHz audio and wireless connectivity options, it's a top choice for modern communication needs.
Features:
- Supports up to 32 beltpacks (FSII and/or FSE), 16 IPT transceivers (FSII and/or FSE) and up to 10 E1 transceivers (1.9 or 2.4GHz)
- Supports up to 100 channels
- 48 ports of connectivity
- Standard 1 rack unit (RU) device
- High quality 12kHz audio to FS Edge beltpacks

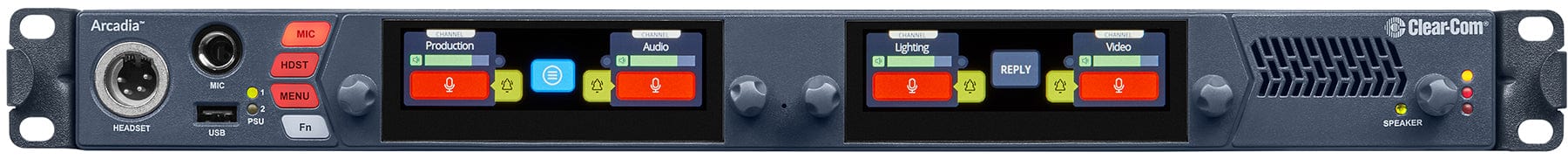

- 2 large full-color touch screen TFT displays
- 4 rotary encoders for gain and menu operation
- Headset or Microphone and Speaker connection
- Stage Announce and Prog. Audio cable
- Functions as PTP Leader Clock
- Wireless 5GHz Edge transceivers and beltpacks
- Wireless 1.9GHz and 2.4GHz FSII splitters, transceivers and beltpacks
- Dante enabled audio devices
Specifications:
- Capacity
- Beltpacks per Station: 32 BPs (FSII or FSE)
- Transceivers/Antennas Supported by Station: 16 x IPT or FSE TCVR, 10 x E1 TCVRs (1.9 or 2.4GHz)
- Gooseneck Microphone Input
- Input Type: Dynamic/Electret – Selectable
- Frequency Response: Gooseneck Mic – Partyline: 200Hz – 12kHz + 3dBu
- Frequency Response: Gooseneck Mic – Line Out: 200Hz – 20kHz + 3dBu
- Mic Limiter Threshold: -35dBu ±3dB
- Mic Limiter Range: ¡Ý 20dB
- Max Input Level: -10dBu
- Input Level: -45dBu nominal; -10dBu MAX
- Headset Mic Voltage: 5V (Electret selectable)
- Speaker Output
- Speaker Type: 1.6 x 2.8in oval
- Load Impedance: 4Ω
- Max Output Level before 1% Distortion: 18dBu ± 2dB
- Total Harmonic Distortion (THD): < 0.5% THD at 1kHz
- Max Speaker Level: 87dB ± 2dB SPL A Weighted at 3ft
- Frequency Response: 100Hz – 10kHz ± 9dB
- Power
- AC Mains input: 100-240V AC, 50-60Hz, 160W Max, IEC60320 C14 inlet.
- DC Low Voltage Input: 12V DC +/- 5%, 12A
- External AC/DC Power Supply (453G020-1 Supplied)
- Input: 100-240V AC, 50-60Hz, 2.2A Max, IEC60320 C14 inlet.
- Output: 12V DC +/- 5%, 12.5A
This Clear-Com Arcadia Central Station is perfect for professional audio setups. It's a 1RU device with 48 ports of connectivity, ideal for those in need of reliable communication solutions. Whether it's for live events, broadcasts, or other professional scenarios, this product offers the features you need. It supports multiple beltpacks and transceivers, has high-quality audio, and easy-to-use touch screens and encoders. The power supply is versatile, accepting both AC and DC inputs. Dimensions are standard 1 rack unit.
