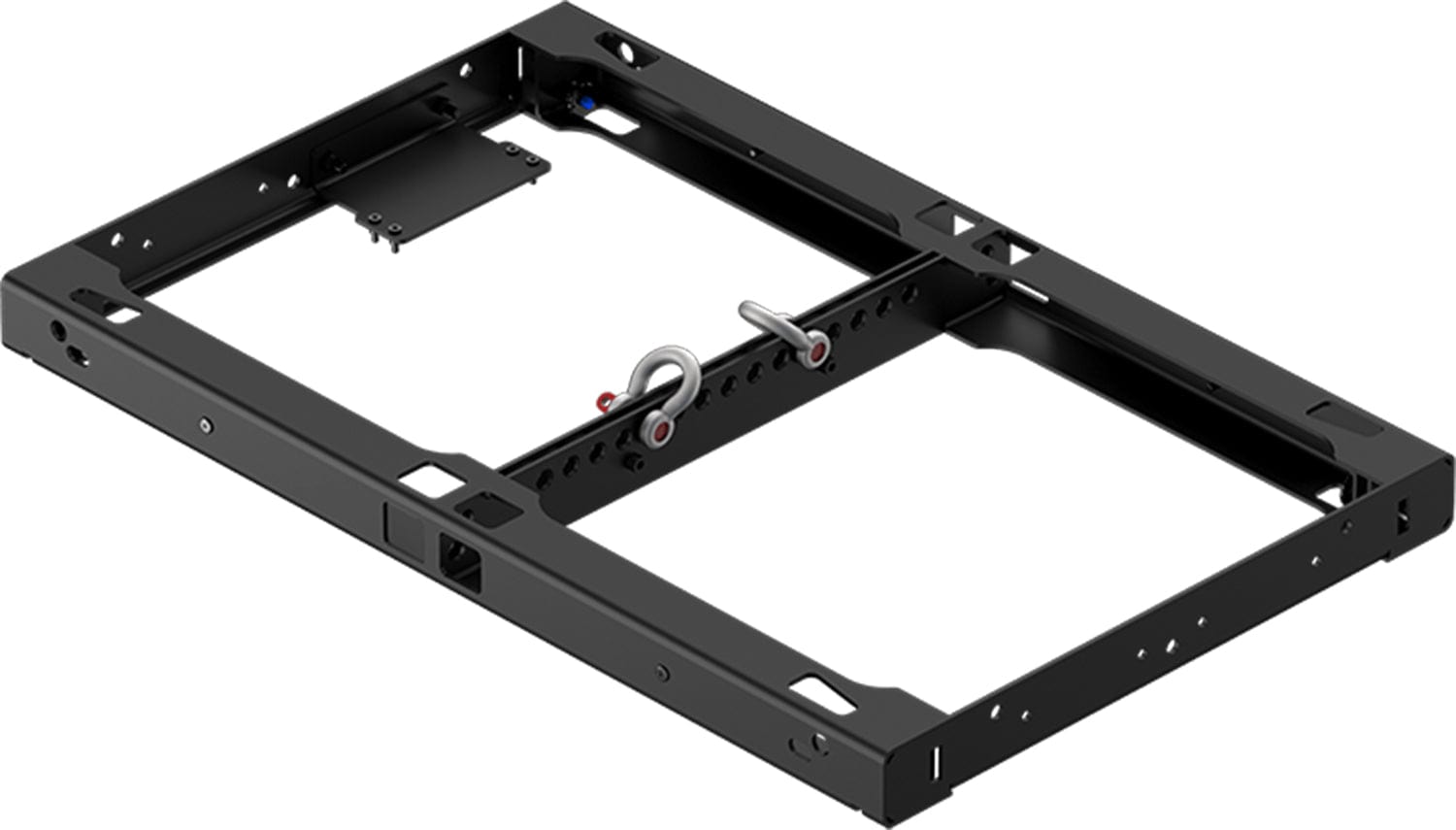

L-Acoustics Karaminibu Rigging Frame: Elevate Your 6 KARA Loudspeakers Setup
Discover the L-ACOUSTICS KARA-MINIBU rigging structure! It's a game-changer for flying or stacking your KARA enclosures as a variable-curvature, vertical line source array. And it even lets you attach KARA to an SB18 subwoofer array.
Features:
- • Four 5/16” R-BLP for secure KARA rigging.
- • One laser support plate with bolts for easy TEQSAS LAP-TEQ mounting.
- • Two shackles with bolts and safety pins for reliable rigging.
- • 17 shackle holes for versatile rigging options.
- • 2 shackle holes for pullback configurations.
Specifications:
- • Dimensions: (L x H x D) 704 x 50 x 447 mm / 27.7 x 2 x 17.6 inch
- • Weight: 7.6 kg / 17 lbs
- • Setup safety limits: Fly up to 6 KARA or 2 SB18/6 KARA or 4 SB18 per KARA-MINIBU. Stack up to 6 KARA per KARA-MINIBU.
- • Material: High-grade steel coated with polyester powder. Accessories include 4 R-BLP, 1 laser support plate with 4 bolts, 2 shackles
The L-Acoustics Karaminibu Rigging Frame is designed for professional audio setups. It's perfect for event organizers, venues, and audio engineers who want to enhance their sound systems. Use it to fly or stack your 6 KARA Loudspeakers in a variable-curvature, vertical line source array. You can also attach it to an SB18 subwoofer array. The frame has the following features: four 5/16” R-BLP for KARA rigging, one laser support plate with four bolts for optional TEQSAS LAP-TEQ laser/inclinometer device mounting, two shackles fitted with 12 mm/0.47 inch-diameter bolts and safety pins, 17 shackle holes for rigging, and 2 shackle holes for pullback configurations. Specifications include dimensions of 704 x 50 x 447 mm / 27.7 x 2 x 17.6 inch, weight of 7.6 kg / 17 lbs, and setup safety limits of 1 maximum 6 KARA or 2 SB18/6 KARA or 4 SB18 per KARA-MINIBU in flown config and maximum 6 KARA per KARA-MINIBU in stacked config. It's made of high-grade steel coated with polyester powder and comes with 4 R-BLP, 1 laser support plate with 4 bolts, and 2 shackles.
