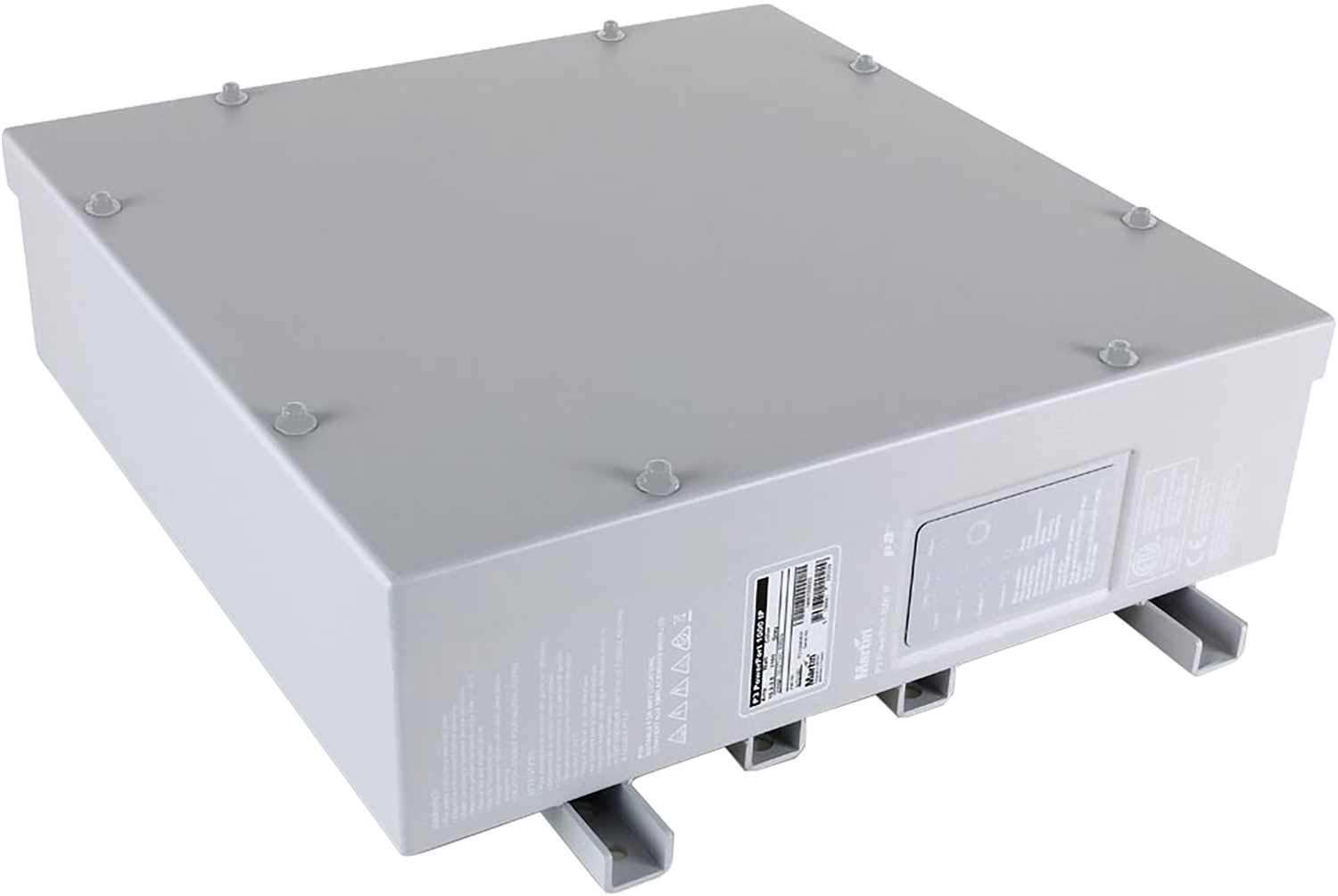

Martin P3 PowerPort 1000 IP Install: Your Ultimate LED Video Power Solution
Unleash the full potential of your creative LED video installations with the Martin P3 PowerPort 1000 IP Install. This all-in-one power supply and data processor is a game-changer for Martin's range of innovative LED video products, like the Exterior PixLine and VC-Dots. When paired with Martin's award-winning P3 System Controllers, it delivers stable power and high-speed, high-capacity video processing. Setup is a breeze, making it perfect for both pros and DIY enthusiasts.
- All-in-one power and data processor for Martin's fixed-installation creative LED video products
- Flexible installation options: can be placed remotely, indoors or outdoors
- Easy cabling and configuration
Features:
- Cutting-edge P3 image processing technology
- Seamless setup and addressing via P3 System Controller family
- No need for local configuration
- P3 input and thru for daisy-chaining
- Optional fiber-interface for enhanced connectivity
- 4 hybrid power/data output ports
- Wall-mountable or free-standing for flexible placement
- Can be located up to 50 m away from the creative LED video products
- Built to withstand the elements with IP66 rating
Specifications:
- Physical
- Length: 426 mm (16.8 in.)
- Width: 483 mm (19.1 in.)
- Height: 146 mm (5.8 in.)
- Weight: 8 kg (17.7 lbs.)
- Control and Programming
- Addressing and status: Via P3 System Controller
- Mapping: Via P3 System Controller
- Firmware update: Via P3 System Controller

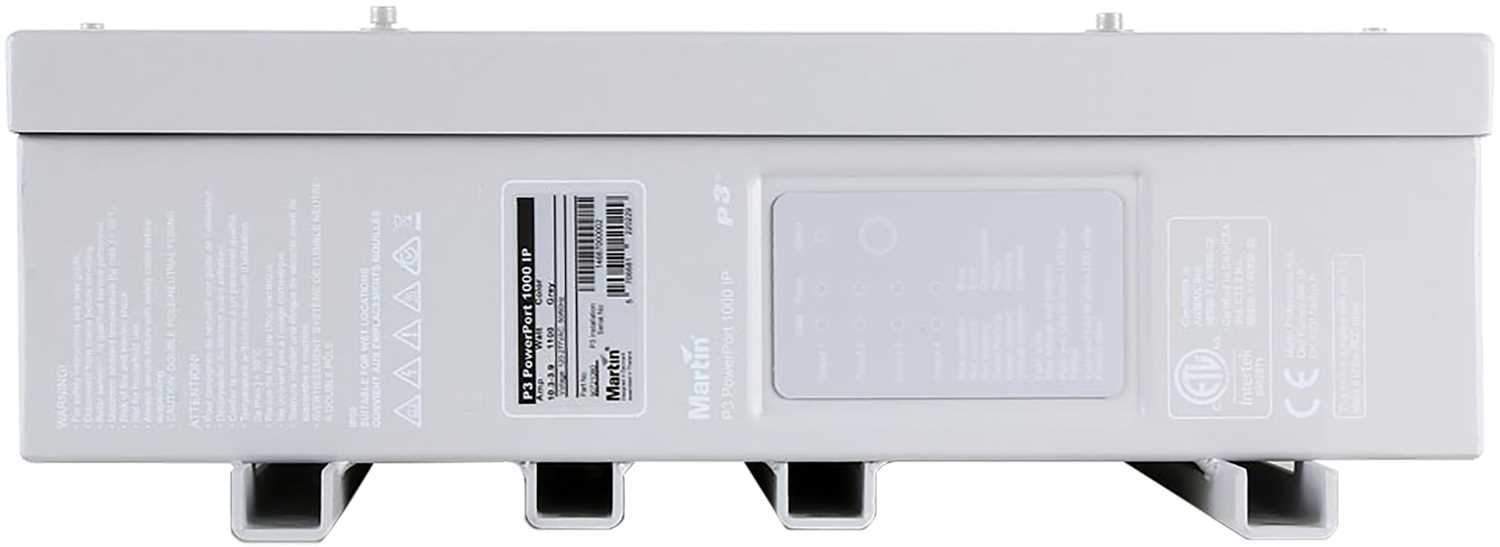

- Control/User Interface
- Device status: Multicolor status LED
- Power output status: Four LEDs
- Data output status: Four LEDs
- Device test and reset: Pushbutton to call up local test patterns and reset device
- Status LEDs and pushbutton can be disabled remotely if required
- P3 Signal Protocol
- Signal type: Gigabit Ethernet
- Protocol: Proprietary Martin P3
- Hot pluggable: Yes, electrically isolated at all connections
- Cable type: Ethernet, CAT 5e or better
- Cable length: Up to 100 m (328 ft.) between any 2 devices, extendable with Ethernet switch or conversion to fiber
- System integration
- VC-Dot family via VC-Feeder
- Exterior PixLine family
- VDO Sceptron family
- VC-Grid family (indoor product)
- VC-Strip family (indoor product)
- Exterior Dot-HP family
- Construction
- Protection rating: IP66
- NEMA enclosure rating: Type 3
- Housing: Aluminum
- Color: Alu grey (customized colors available on project basis)
- Effective Projected Area (EPA): 0.21 m2RoHS compliant
- Installation
- Mounting: Brackets for installation on flat surface
- Orientation: Any, except with cable glands facing up or lid facing down

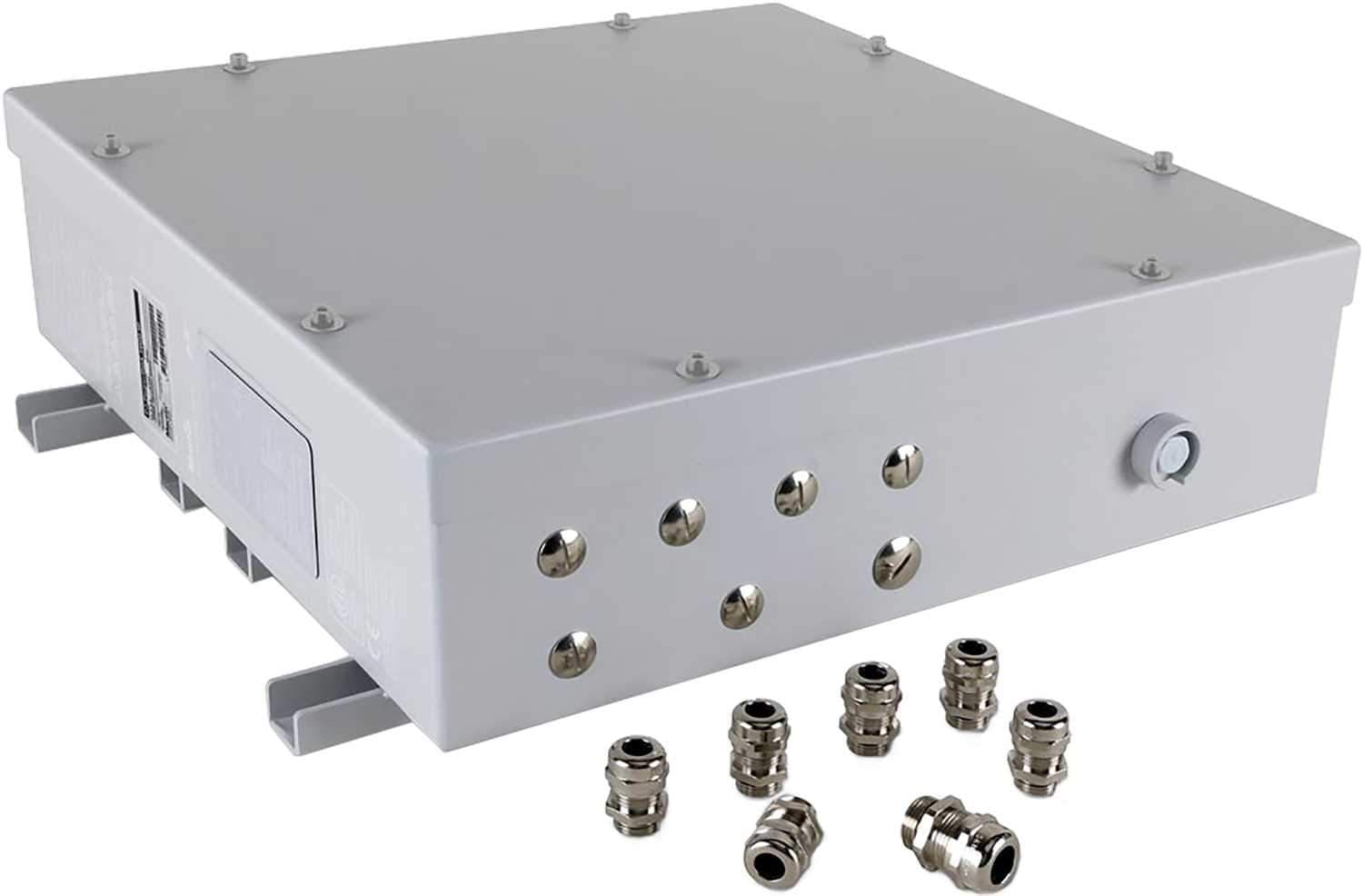

- Connections
- Power input: Cable gland (M20), internal screw terminals
- P3 data in/out: Two cable glands (M16), two internal RJ45 connectors (if copper-to-fiber unit is installed, one cable gland can be used for fiber)
- Combined power & data out: Four cable glands (M16), internal screw terminals
- M16 cable glands accept 5.5 - 10 mm cable, M20 glands accept 8-13 mm cable
- Electrical
- AC power: 120-277 V nominal, 50/60 Hz
- Power supply units: Auto-ranging electronic switch-mode
- Typical total power consumption: 1000 W (including full load of connected display devices, all at full intensity)
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 20.9 A
- Total power consumption in idle state (at 25° C, all connected devices powered off): 22 W
- Thermal
- Cooling: Convection
- Maximum ambient temperature (Ta max.): 55° C
- Minimum ambient temperature (Ta min.): -30° C
- Total heat dissipation (calculated, +/- 10%): 345 BTU/hr. (not including display devices but with system at full load)
- Approvals
- EU safety: EN 60950
- EU EMC: EN 55032, EN 55103-2, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
- US safety: ANSI/UL 60950-1
- Canadian safety: CSA C22.2 No. 60950-1
The Martin P3 PowerPort 1000 IP Install is perfect for professional and DIY LED video installations. It can be used indoors or outdoors, remotely or up close. With its compact size (Length: 426 mm, Width: 483 mm, Height: 146 mm, Weight: 8 kg), it's easy to install and integrate into your setup. Whether you're a lighting designer, event planner, or just looking to enhance your home entertainment, this product is a great choice.
