Shure BLX14 Wireless Guitar System - H11 Band

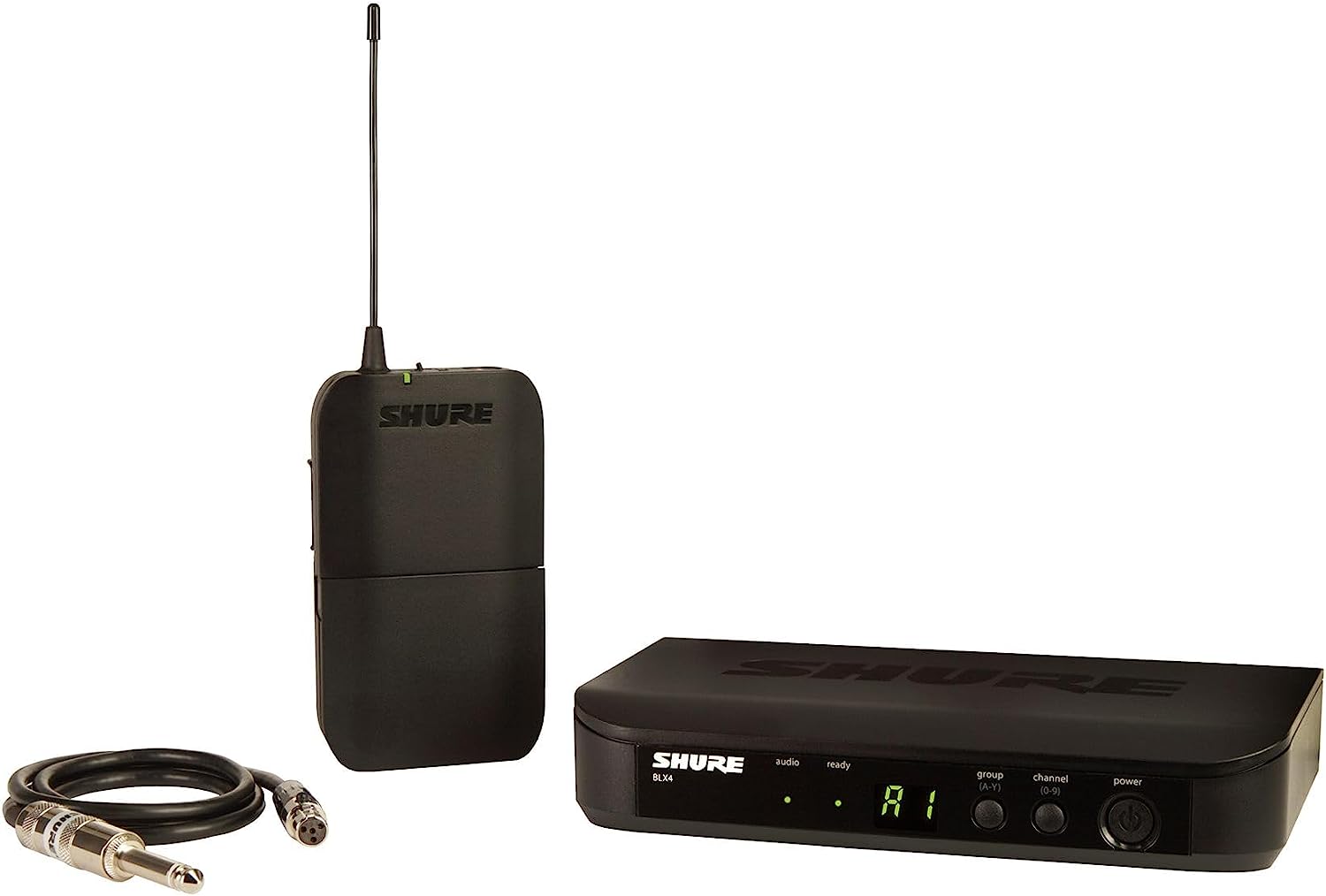

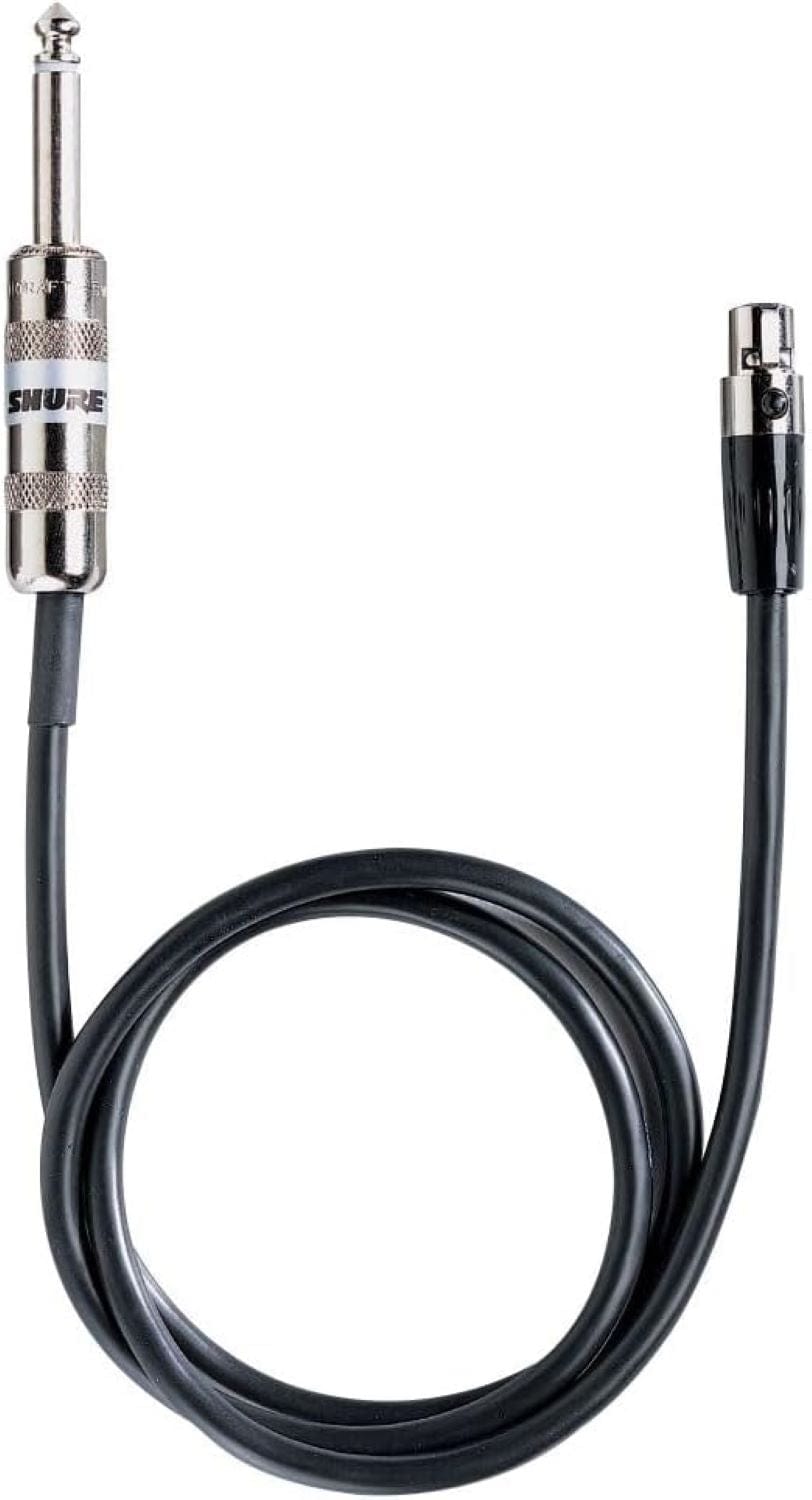

Get ready to rock the stage with the Shure BLX14 Wireless Guitar System! It offers professional-quality sound right out of the box, along with simple setup and up to 14 hours of battery life. Here's what's included: a BLX4 tabletop single-channel receiver, a BLX1 bodypack transmitter with a WA302 instrument cable, a power supply, 2 AA batteries, windscreens, and a user guide.
Key Features:
- • Superior Audio: Perform with confidence knowing you have top-notch sound.
- • Reliable Signal: Extend your range without worry.
- • Easy Setup: Own the stage effortlessly.
Specifications:
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 123
- Included Transmitters: 1 x Bodypack
- Diversity: Antenna Diversity
- RF Frequency Band: H11(572-596 MHz)
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band: 12
- Dynamic Range: 100 dBA

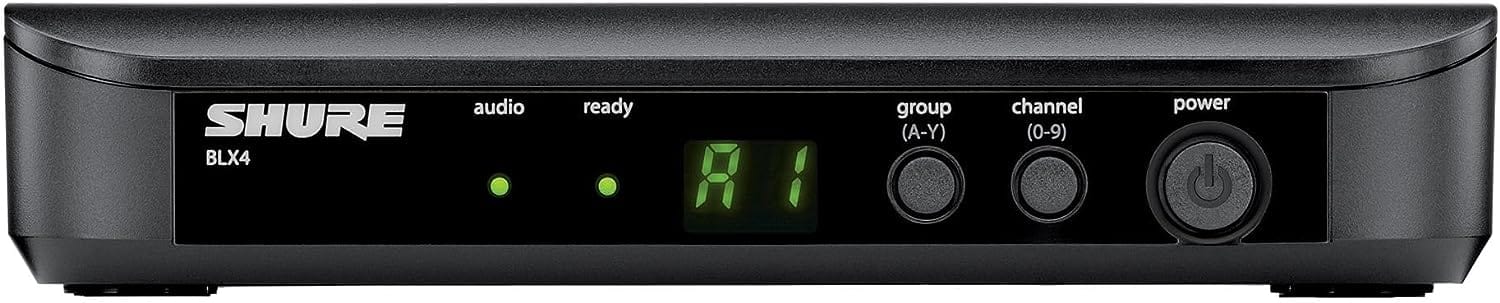

- Receiver:
- Receiver Type: Tabletop
- Antenna: 2 x Internal, Fixed
- Number of Audio Channels: 1

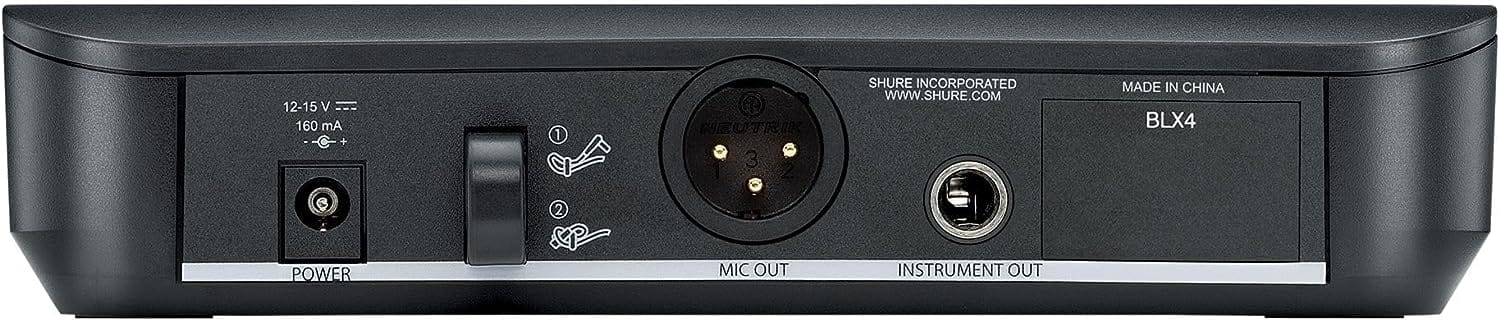

- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4' TS Female Unbalanced Output
- Audio Output Level:
- XLR Outputs: -27 dBV (Mic Level)
- 1/4' Outputs: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Outputs: 200 Ohms
- 1/4' Outputs: 50 Ohms
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 2 x LED (AF Level, Sync)
- Housing: ABS
- Dimensions: 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm
- Weight: 8.5 oz / 241 g

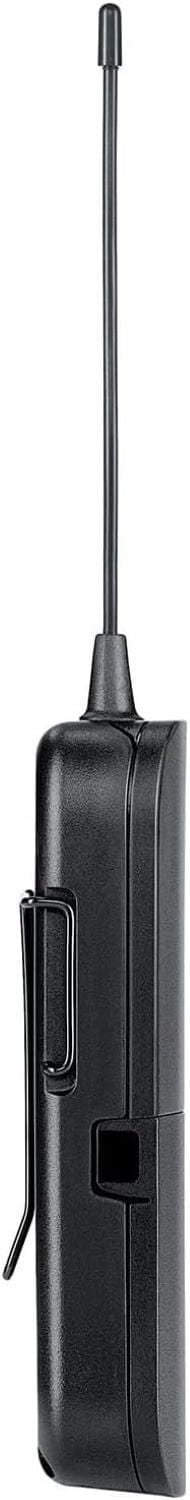

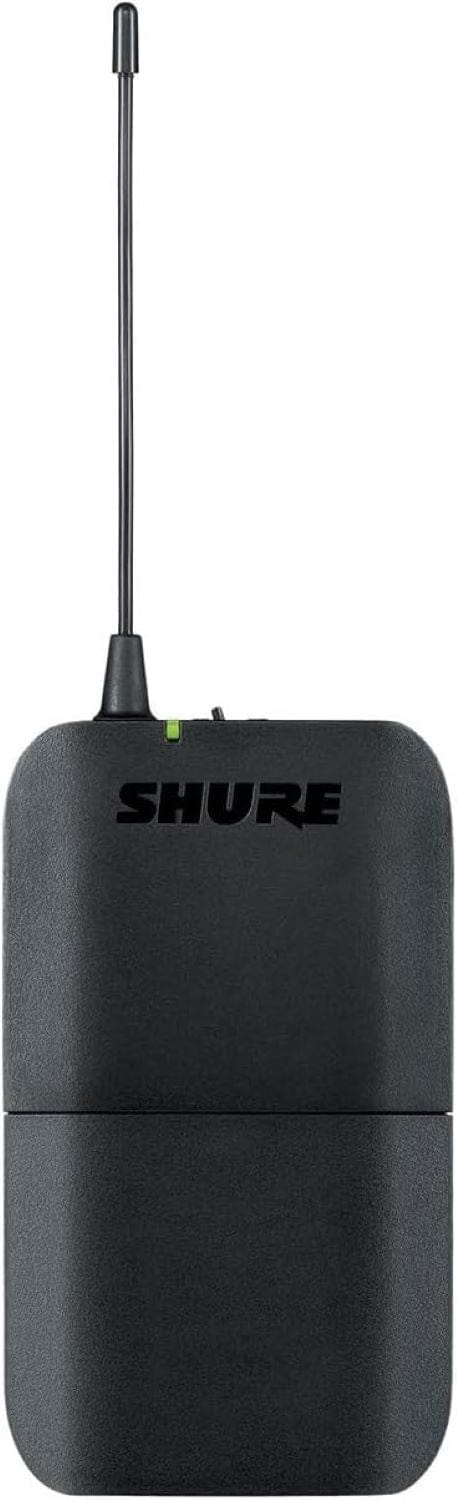

- Transmitter:
- Transmitter Type: Bodypack
- RF Output Power: 10 mW

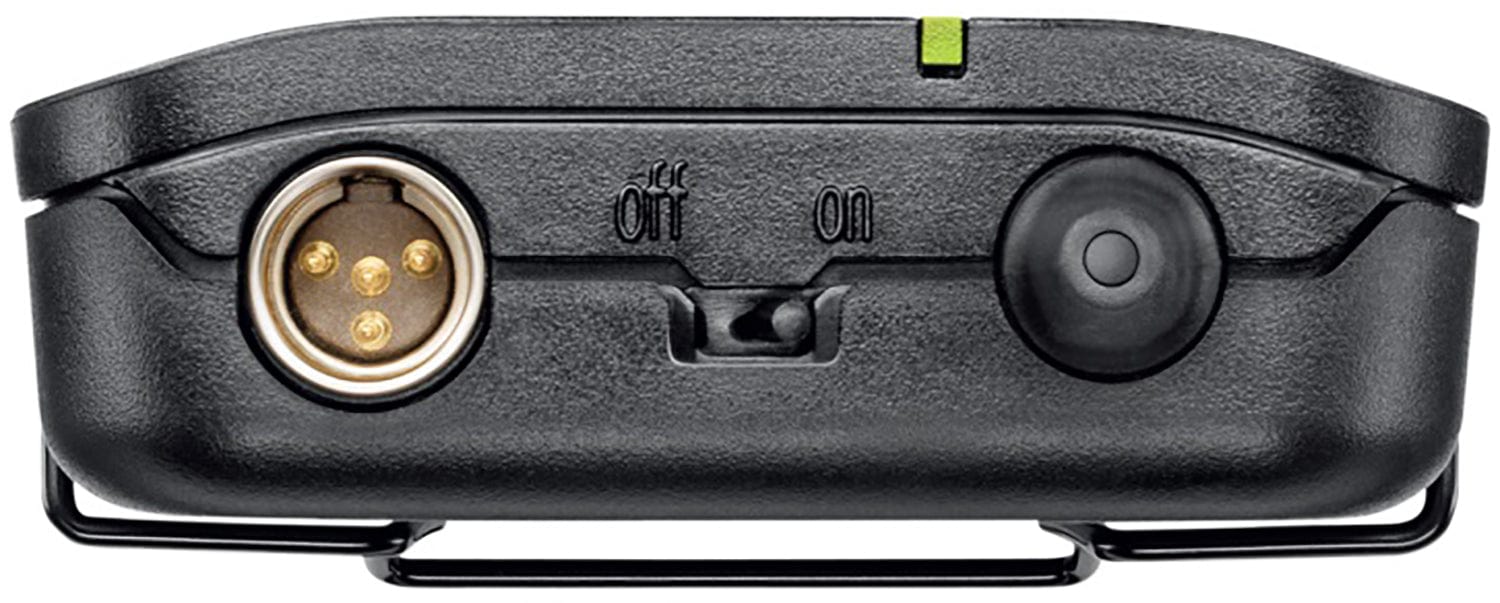

- Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -16 to +10 dB
- Sync Method: Manual
- Antenna: 1 x Flexible Whip, Fixed (Beltpack)

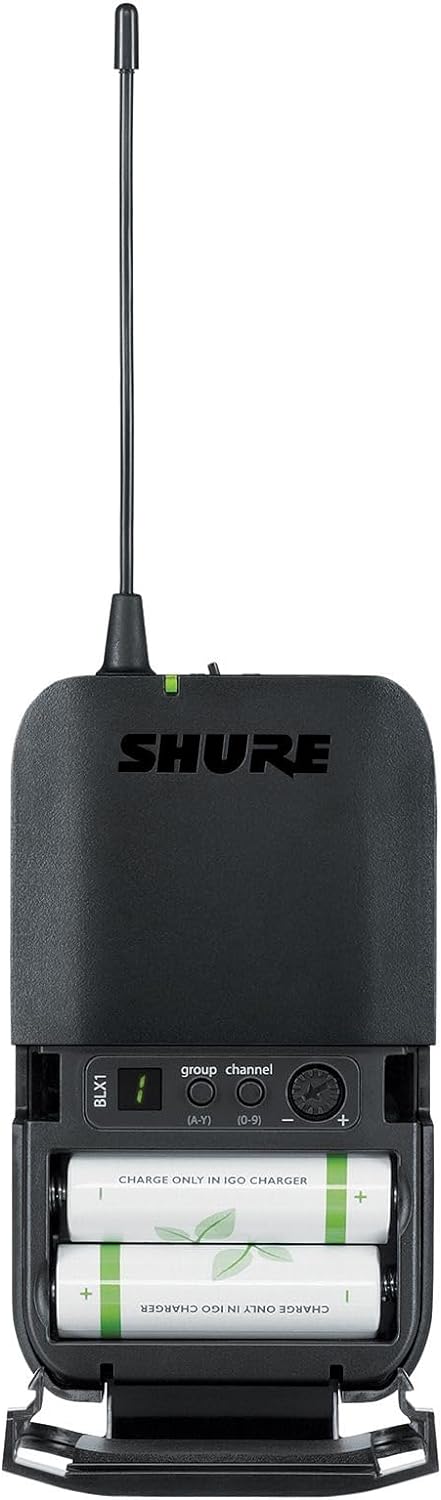

- Power Requirements: Battery
- Battery Type: 2 x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm
- Weight: 2.6 oz / 75 g (without Batteries)
- Packaging Info:
- Package Weight: 2.955 lb
- Box Dimensions (LxWxH): 13.5 x 11.9 x 4.1'
The Shure BLX14 Wireless Guitar System is perfect for guitarists who want to take their performance to the next level. Whether you're playing on stage or in a small venue, this system offers professional-quality sound with simple setup. The receiver is a tabletop single-channel unit, and the bodypack transmitter comes with a WA302 instrument cable. The system includes a power supply, 2 AA batteries, windscreens, and a user guide. With up to 14 hours of battery life, you can play for extended periods without worrying about running out of power. The system has a max operating range of 300' / 91.4 m (Line of Sight). The receiver dimensions are 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm and it weighs 8.5 oz / 241 g. The transmitter dimensions are 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm and it weighs 2.6 oz / 75 g (without Batteries).
