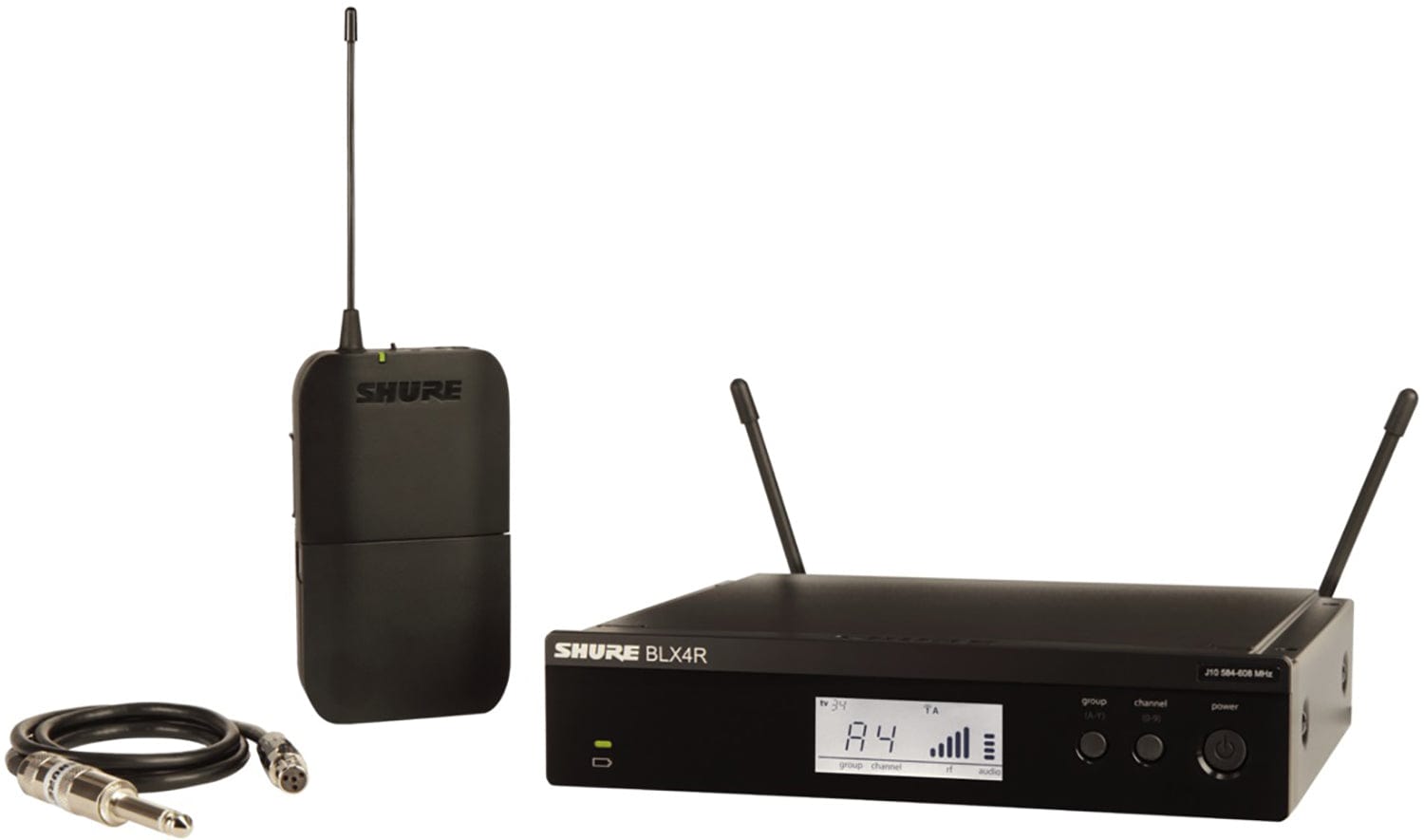

Shure BLX14R H11 Band Wireless Rack-mount Guitar System - Unleash Your Guitar's Potential
Discover the Shure BLX14R Wireless Rack-mount Guitar System - H11 Band! This system offers professional-quality sound right out of the box. It's perfect for guitarists who want to take their performance to the next level. With simple setup and up to 14 hours of battery life, you can focus on playing without any distractions.
Features:
- • Superior Audio - Play with confidence knowing your sound is top-notch.
- • Reliable Signal - Extend your range and perform without dropouts.
- • Easy Setup – Own the stage with a hassle-free setup process.
Specifications:
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 123
- Included Transmitters: 1 x Bodypack
- Diversity: Antenna Diversity
- RF Frequency Band: H11 (572-596 MHz)
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band: 12
- Dynamic Range: 100 dBA
- Receiver:
- Receiver Type: Tabletop
- Mounting Options: Rackmount (with Included Hardware)
- Rackmount Size: 1 RU (1/2 Rack)
- Antenna: 2 x Internal, Fixed
- Number of Audio Channels: 1

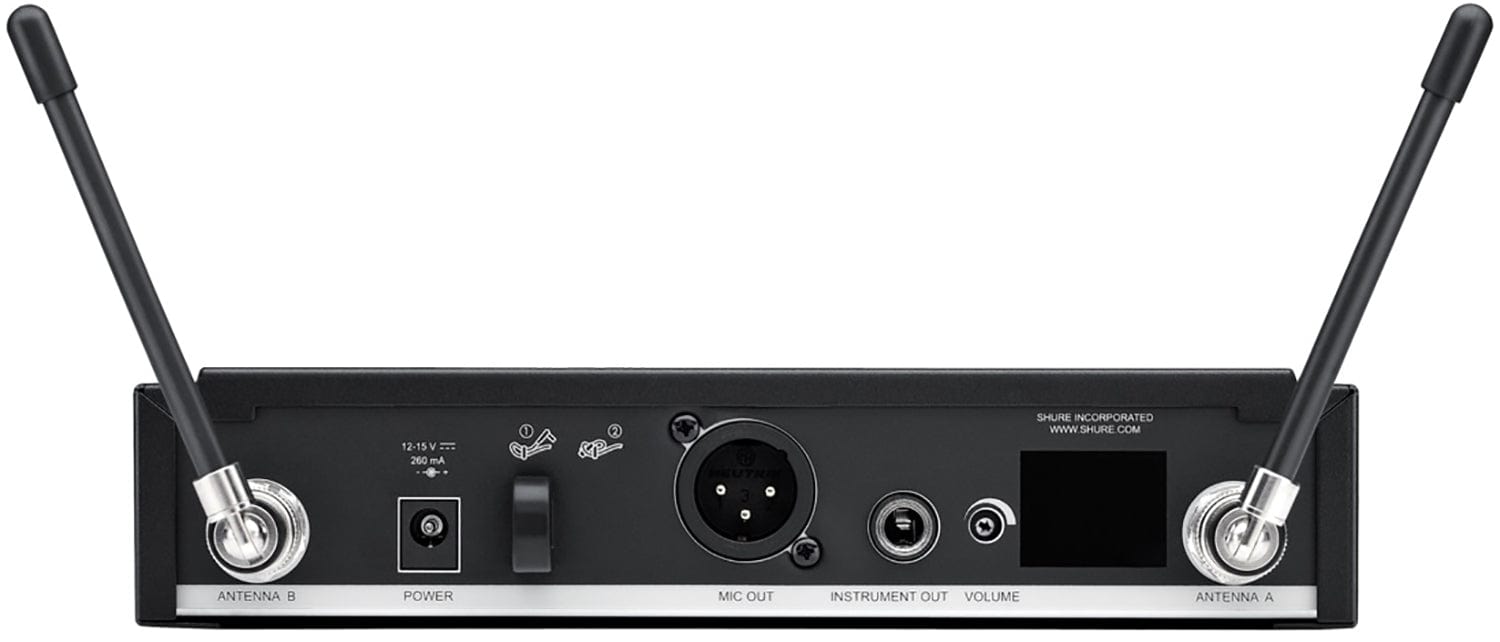

- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4' TS Female Unbalanced Output
- Audio Output Level:
- XLR Outputs: -27 dBV (Mic Level)
- 1/4' Outputs: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Outputs: -200 Ohms
- 1/4' Outputs: >50 Ohms
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
- Display & Indicators:
- 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
- 1 x LED (Transmitter Battery Status)
- Housing: Steel
- Dimensions: 7.8 x 2 x 6.4' / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
- Weight: 35.2 oz / 998 g
- Transmitter:

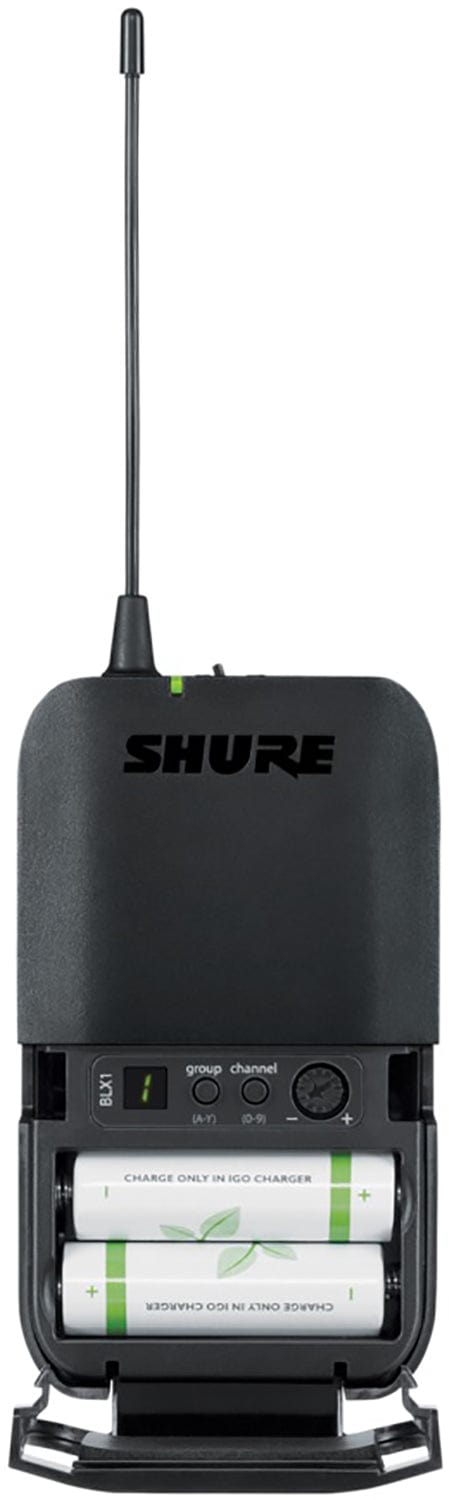

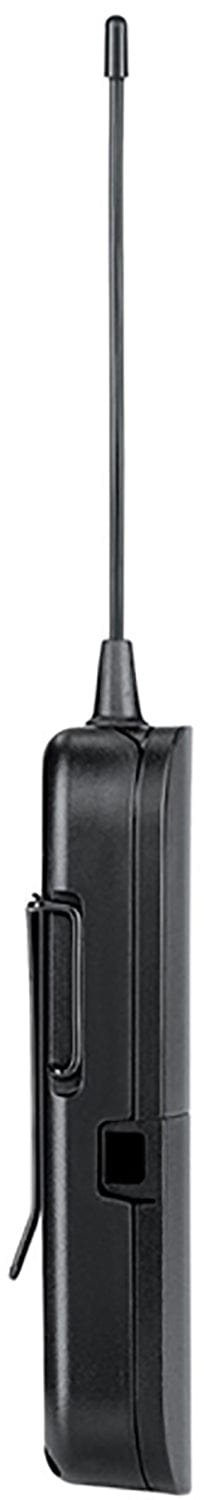

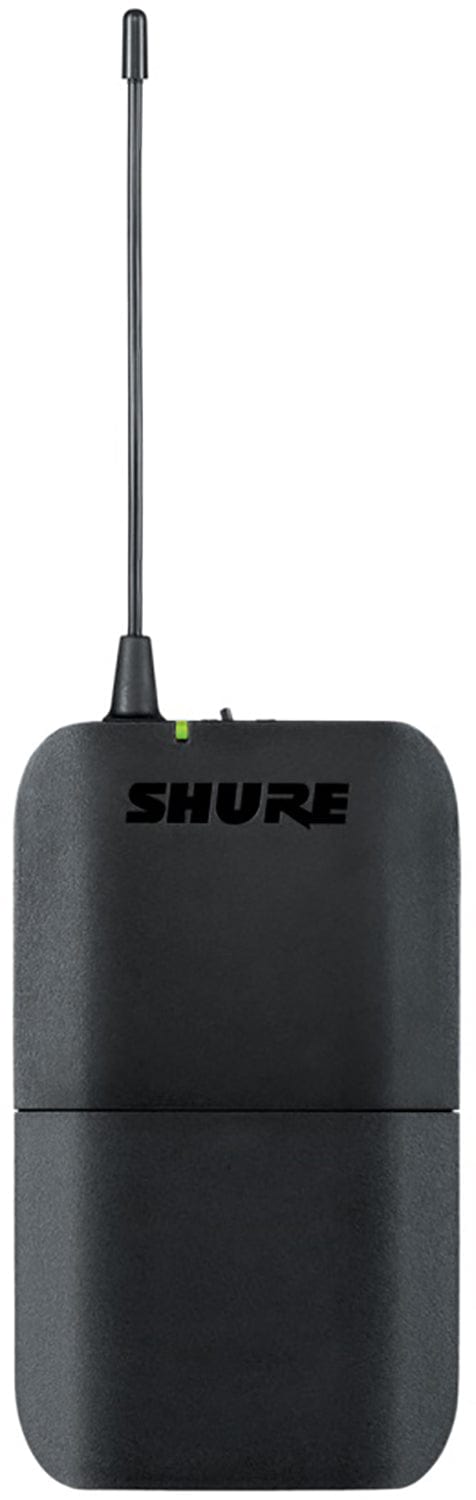

- Transmitter Type: Bodypack
- RF Output Power: 10 mW

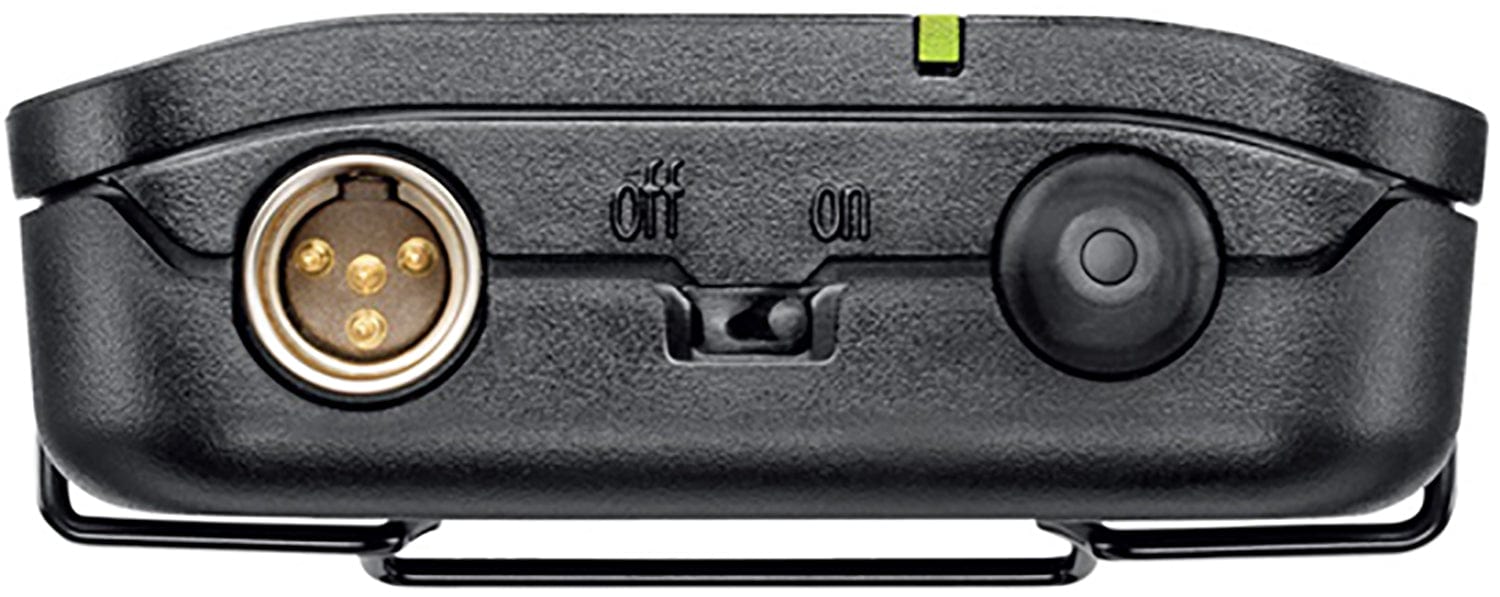

- Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
- Included Cable Connector: 1/4' TS
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -16 to +10 dB
- Sync Method: Manual
- Antenna: 1 x Flexible Whip, Fixed (Beltpack)
- Power Requirements: Battery
- Battery Type: 2 x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm
- Weight: 2.6 oz / 75 g (without Batteries)
- Packaging Info:
- Package Weight: 6.575 lb
- Box Dimensions (LxWxH): 18.4 x 15.2 x 4.1'
This Shure BLX14R Wireless Rack-mount Guitar System - H11 Band is perfect for guitarists looking to enhance their live performances. It comes with everything you need for a professional sound setup. The receiver is rackmountable, measuring 7.8 x 2 x 6.4' (198 x 50 x 163 mm) without mounting hardware and antennas, weighing 35.2 oz (998 g). The bodypack transmitter is compact, 2.5 x 4.3 x 0.8' (64 x 110 x 21 mm), weighing 2.6 oz (75 g) without batteries. Ideal for gigs and rehearsals, it offers great audio quality and reliable signal.
