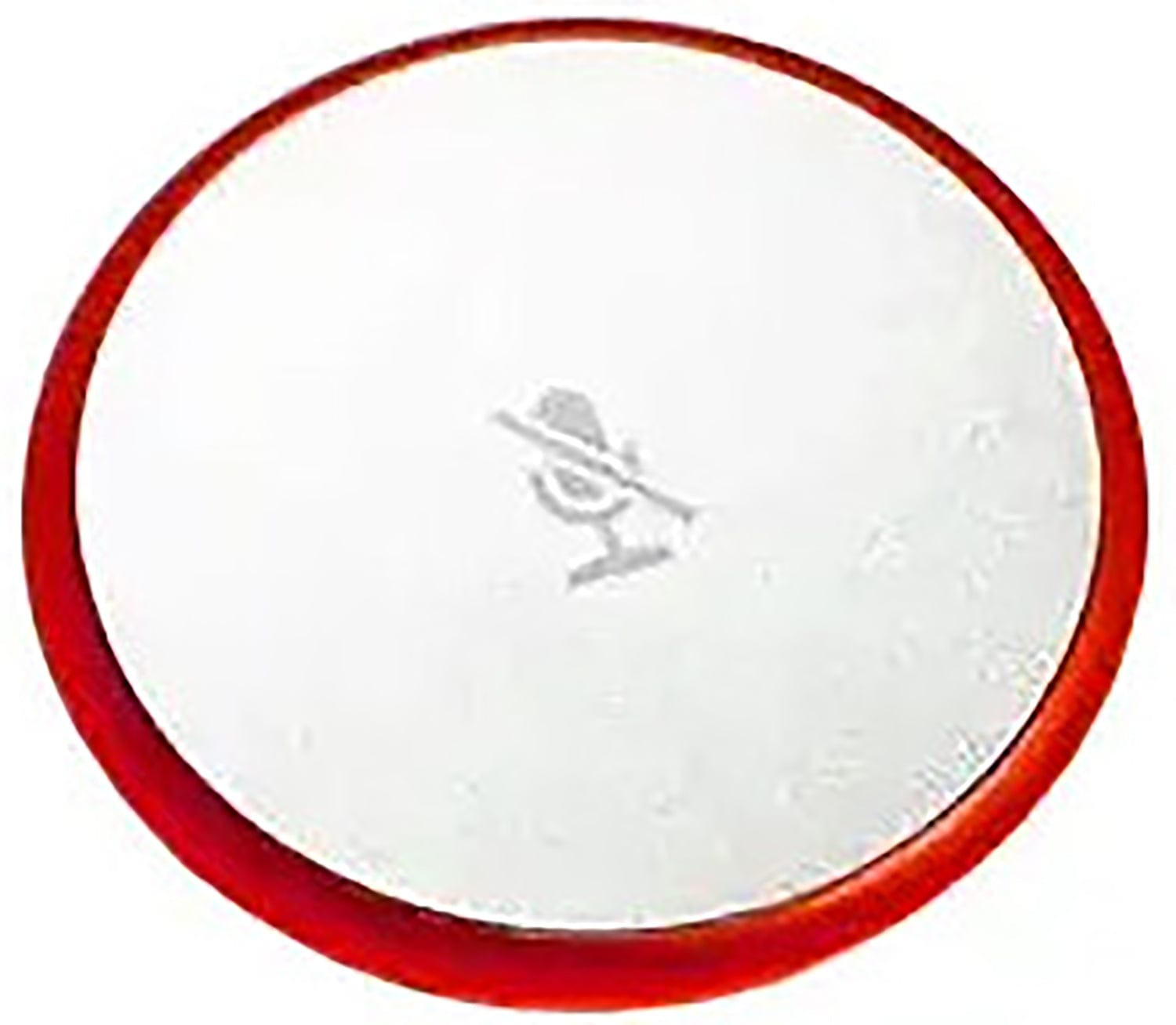

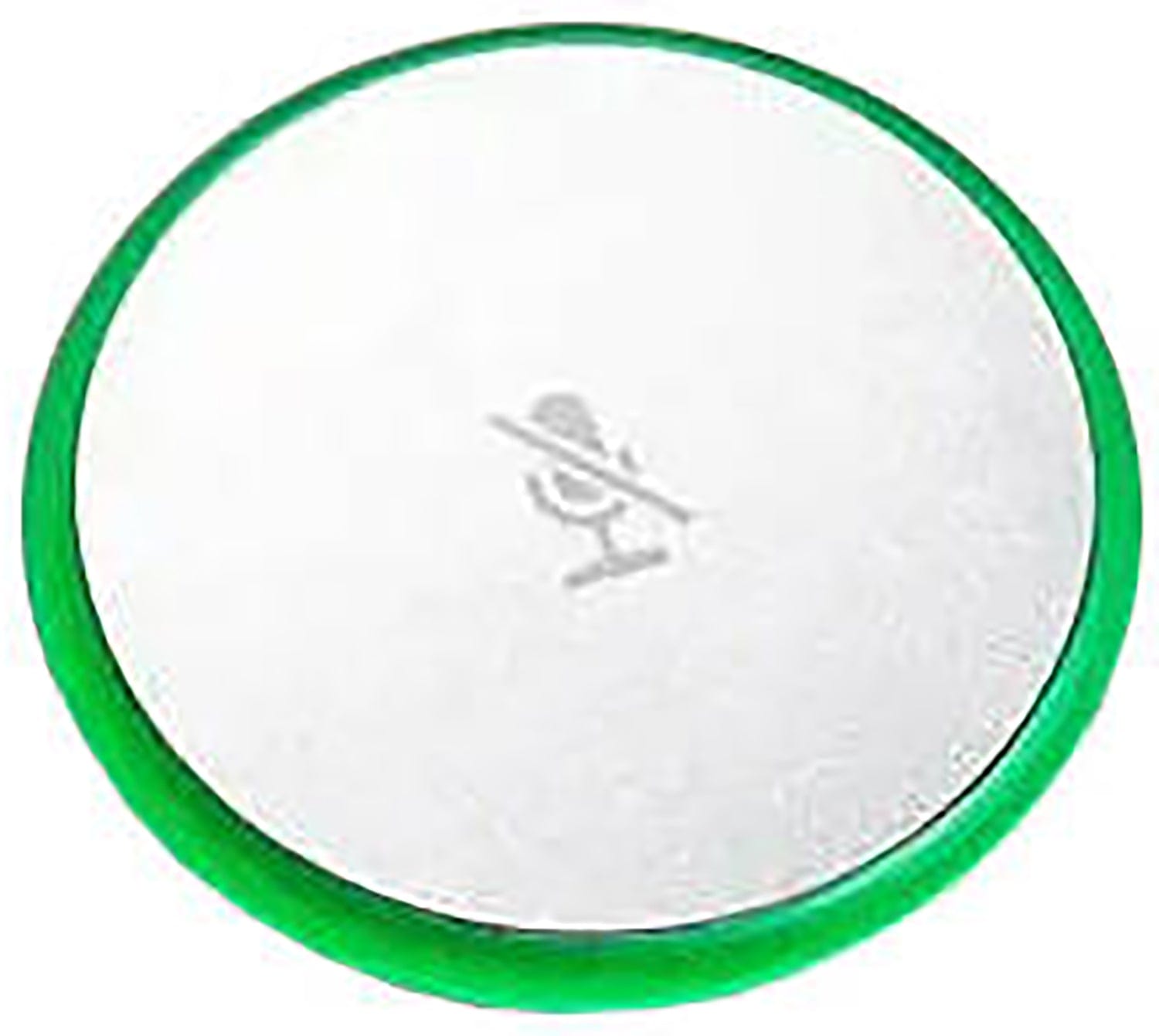

Shure MXA-NMB Network Mute Button - Enhance Your Shure Networked Audio Setup
Upgrade your Shure networked audio system with this configurable PoE-powered mute button. Ideal for users who want to easily manage microphone muting. • Configurable for one or multiple microphones. • Comes with Designer System Configuration software for effortless setup. • Compatible with third party control systems.
Features:
- Designer System Configuration software for easy setup and configuration
- SystemOn Asset Management for remote management & troubleshooting
- PoE powered
- Compatible with third party control systems via programmable control strings
- LED status ring with configurable colors and brightness
- Configurable as toggle, push to talk and push to mute functionality
- IPX1 rated
- Easy table installation in 1” (25mm) or 7/8” (22mm) holes
- Available with microphone icon
Specifications:
- Electrical:
- Connector Type: RJ45, 8-pin power cable
- Cable Requirements: Cat 5e or higher (shielded cable recommended)
- Power Requirements: Power over Ethernet (PoE), Class 1
- Power Consumption: 2 W, maximum
- Control Software: Shure Designer
- Ingress Protection Rating: IEC 60529 IPX1 Water Protected
- Mechanical:
- Operating Temperature Range 6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range 29°C (-20°F) to 74°C (165°F)
- Dimension (H x W x D):
- Base 3.74 x 3.74 x 1.06 in. (94.96 x 94.96 x 27.04 mm)
- Mute Button 1.54 x 1.54 x 0.2 in. (39.02 x 39.02 x 5.02 mm)
- Mute Button Tube 0.87 x 0.87 x 3.03 in. (22 x 22 x 76.98 mm)
- Grommet 1.97 x 1.97 x 0.31 in. (49.97 x 49.97 x 8 mm)
- Spacer 1.93 x 1.93 x 0.05 in. (49 x 49 x 1.2 mm)
This Shure MXA-NMB Network Mute Button is perfect for those looking to enhance their Shure networked audio products setup. It's great for conference rooms, offices, or any space with Shure audio systems. The target is audio professionals and those who rely on clear communication through their audio setups. It has a base of 3.74 x 3.74 x 1.06 in. (94.96 x 94.96 x 27.04 mm), a mute button of 1.54 x 1.54 x 0.2 in. (39.02 x 39.02 x 5.02 mm), and other dimensions as specified. It operates in a temperature range of 6.7°C (20°F) to 40°C (104°F) and can be stored between 29°C (-20°F) to 74°C (165°F).
