Elation Professional Magmatic PM-DMX1 Pan Motor Accessory

Elation Professional Magmatic PM-DMX1 - The Ultimate Pan Motor Accessory for Magmatic Crisp Max Snow Machine

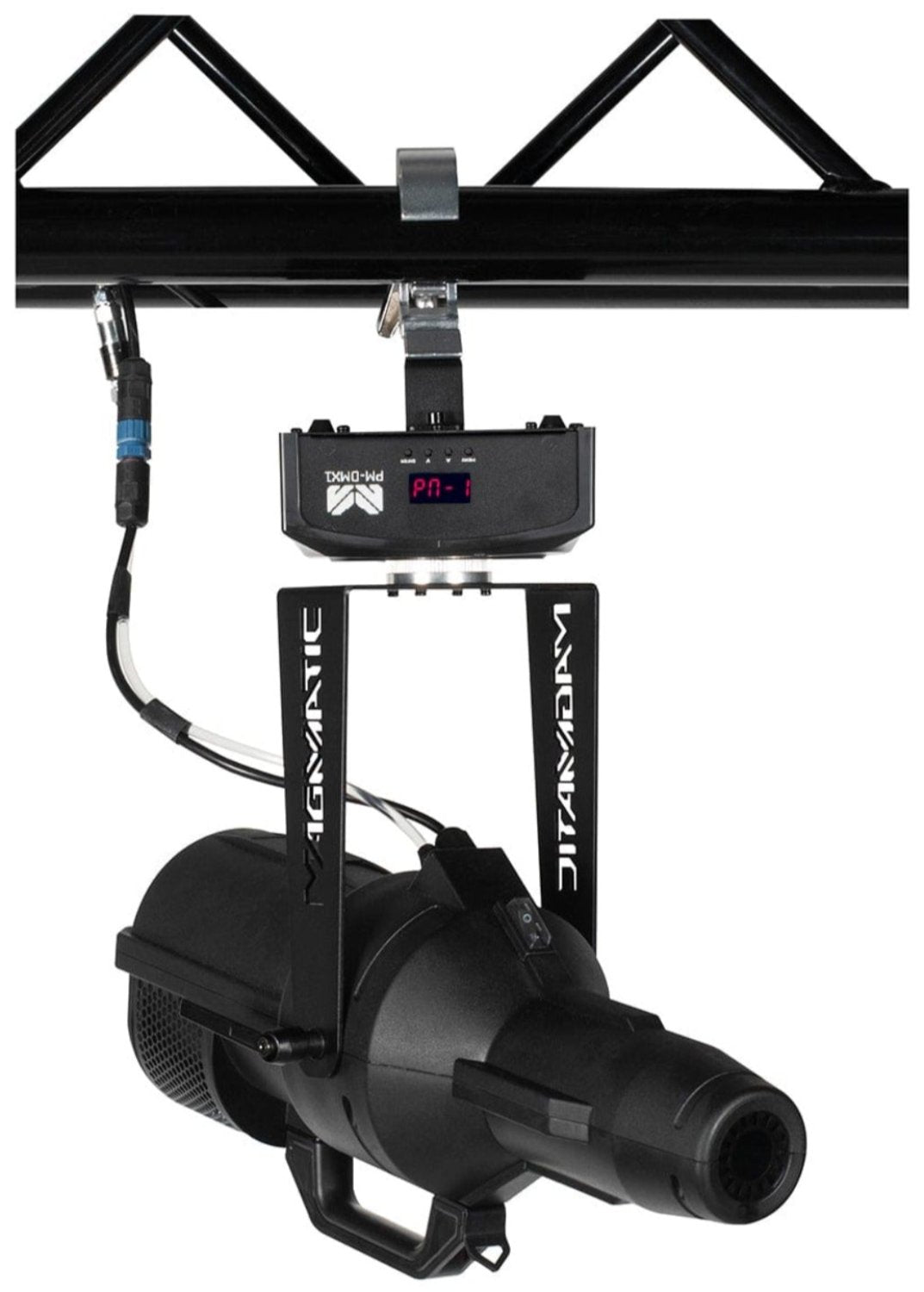

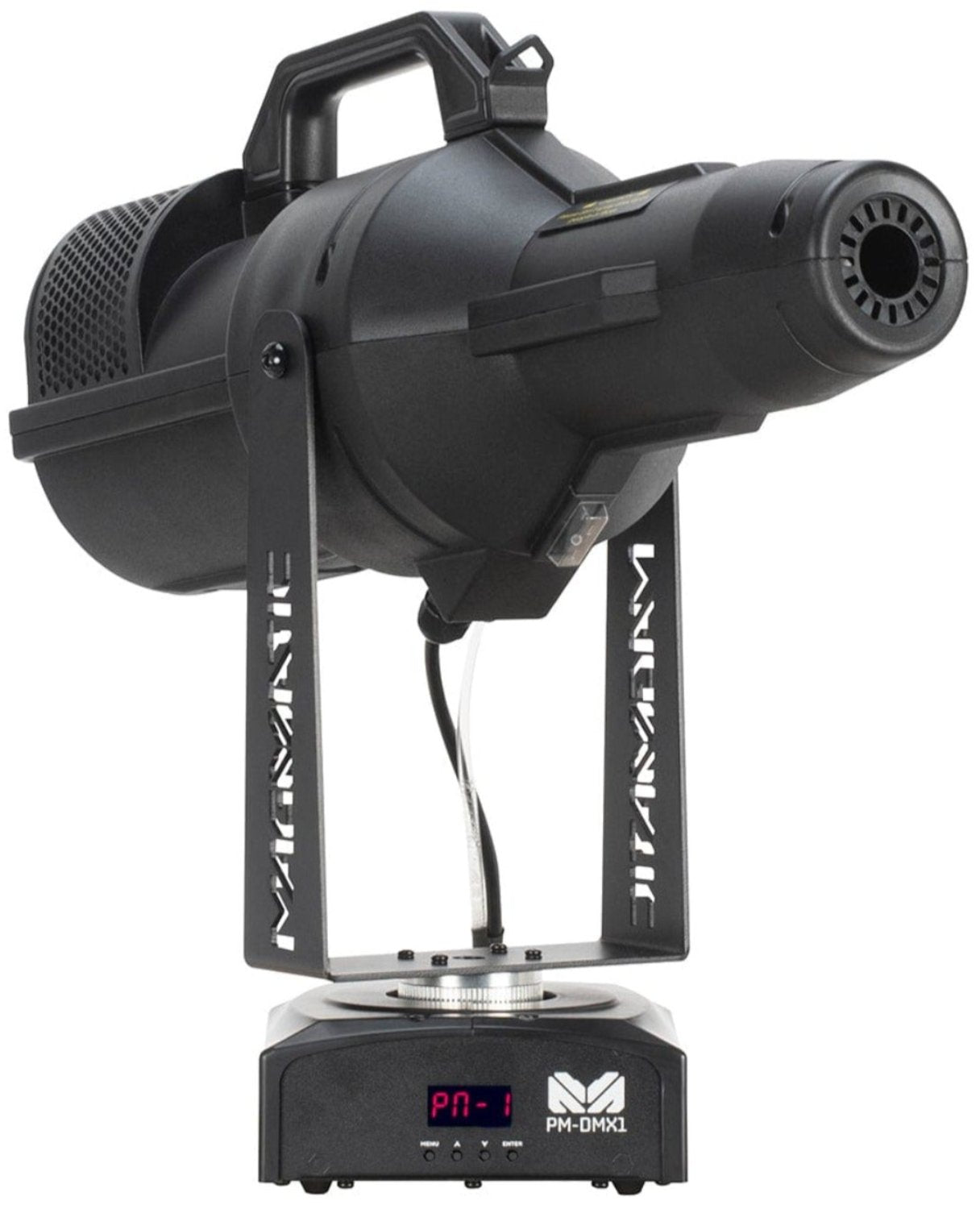

Take your snow machine effects to the next level with the Magmatic PM-DMX1! This amazing pan motor accessory is designed specifically for the Magmatic Crisp Max Snow Machine. • Precise Control: Use the included mounting bracket to attach the Crisp Max output nozzle to the PM-DMX1 and enjoy precise 120-degree pan movement via DMX-512 or easily control it manually with the 4-button LED control panel menu display. • Versatile Modes: Benefit from 2 DMX channel modes, 0-120 degree position index movement, 3 different degree internal auto-pan programs (60°, 90°, 120°) each with 5 speed settings, a pan inversion mode, primary / secondary modes, and 5pin DMX in/out for seamless control connection and linking multiple units. • Easy Setup: The included mounting bracket helps balance the weight distribution of the Crisp Max nozzle unit, and the mini-omega bracket allows for easy clamping and truss mounting. It also comes with a 100-240V auto switching power supply. Ideal for professional event planners and stage technicians looking to add dynamic movement to their snow machine displays.

DESIGNED FOR USE WITH THE MAGMATIC CRISP MAX

Specifications:

• Control / Connections:
• Manual and DMX-512 (2 channel modes)
• 0-120° Pan Movement
• Pan Inversion Mode
• Primary/Secondary Mode
• Auto-Pan Programs and Varying Speeds
• 4-Button Control Panel
• LED System Menu Display

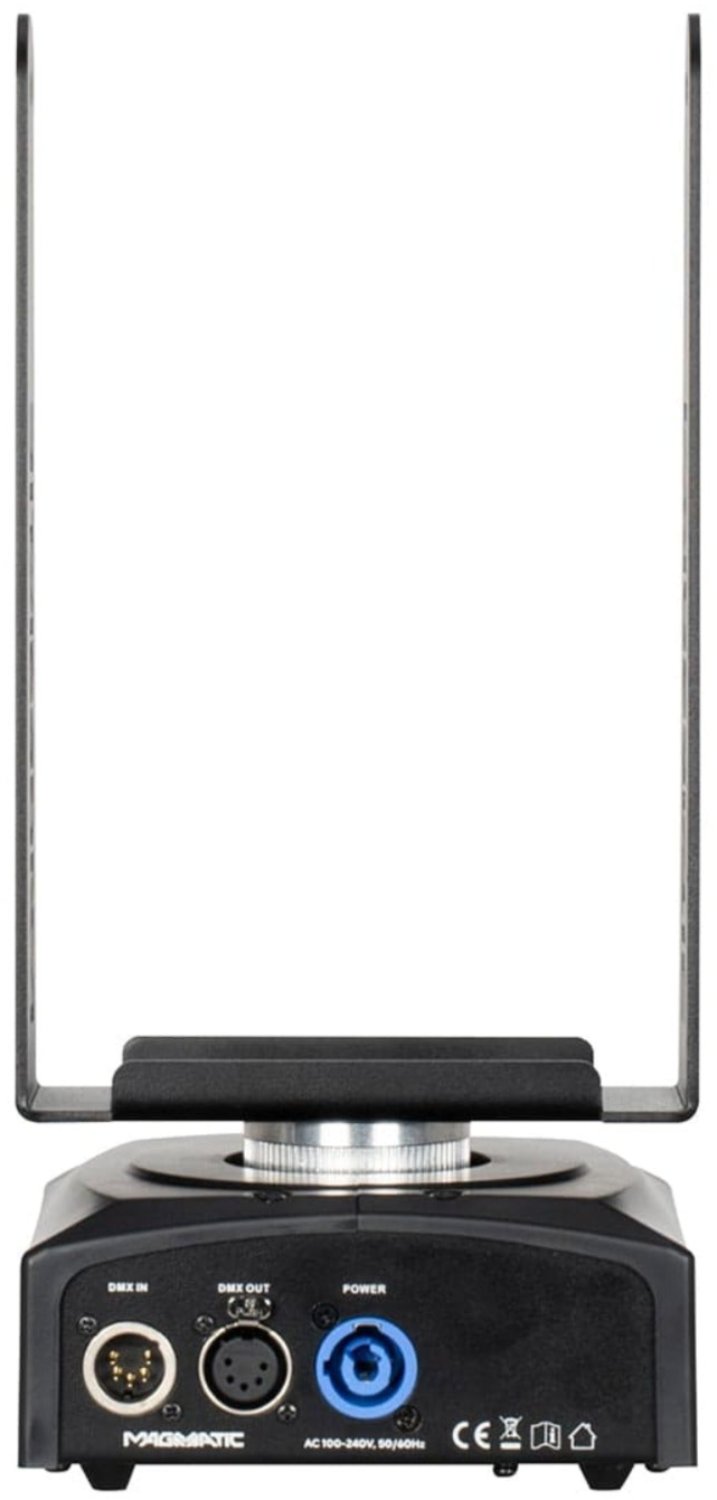

• 5pin DMX In/Out
• AC Power Plug
• Size / Weight:
• Length: 5.8” (147.0mm)
• Width: 6.4” (162.0mm)
• Vertical Height w/ Bracket: 14.2” (361.5mm)
• Weight w/ Bracket: 5.7 lbs. (2.6kg)
• Electrical:
• AC 100-240V 50/60Hz
• 15W Max Power Consumption
• Approvals / Ratings:
• CE | IP20 | cETL

The Magmatic PM-DMX1 pan motor accessory is perfect for professional event planners and stage technicians. Use it with the Magmatic Crisp Max Snow Machine to add dynamic movement to your displays. It offers precise control of 120 degrees of pan movement via DMX-512 or manually. The unit features 2 DMX channel modes, various auto-pan programs with different speeds, and a pan inversion mode. With a 5pin DMX in/out for easy connection and a 100-240V auto switching power supply, it's a breeze to set up. The length is 5.8” (147.0mm), width is 6.4” (162.0mm), vertical height with bracket is 14.2” (361.5mm), and weight with bracket is 5.7 lbs. (2.6kg).
